| Manufacturer Part Number: | MBR3560R |
|---|---|
| Manufacturer: | GeneSiC Semiconductor |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9261 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE SCHOTTKY REV 60V DO4 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MBR3560R Datasheet |
| Internal Part Number | 898-MBR3560R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Schottky Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | GeneSiC Semiconductor | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Diode Type | Schottky, Reverse Polarity | |
| Voltage - DC Reverse (Vr) (Max) | 60V | |
| Current - Average Rectified (Io) | 35A | |
| Voltage - Forward (Vf) (Max) @ If | 750mV @ 35A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 1.5mA @ 20V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Chassis, Stud Mount | |

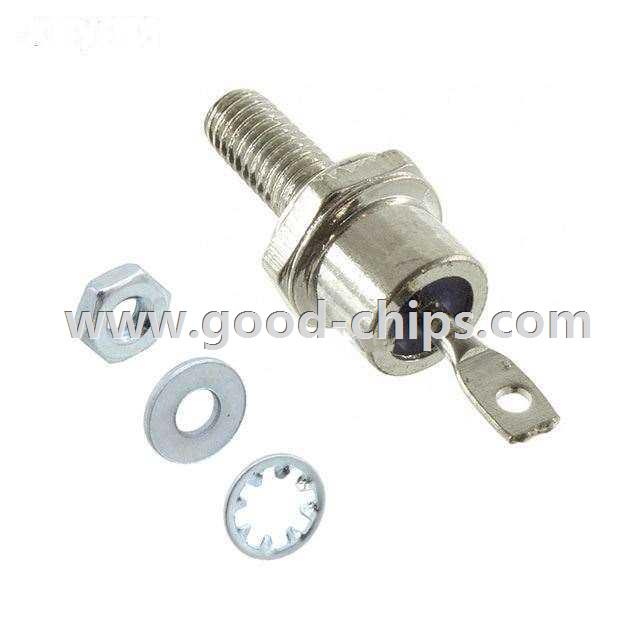

| Package / Case | DO-203AA, DO-4, Stud | |
| Supplier Device Package | DO-4 | |
| Operating Temperature - Junction | -55°C ~ 150°C | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MBR3560R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MBR3560R is in stock for immediate shipping now. We are the distributor of GeneSiC Semiconductor all series components. The condition of MBR3560R is new and unused, you can buy MBR3560R GeneSiC Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MBR3560R.
