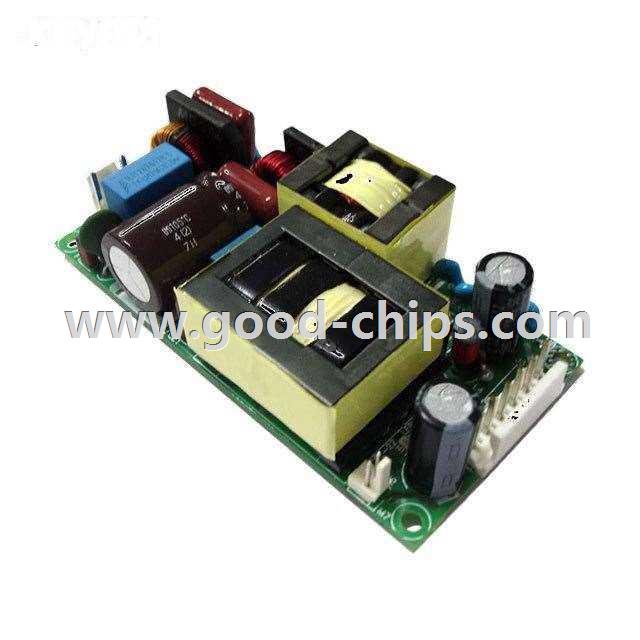

| Manufacturer Part Number: | MBC225-1T24L |
|---|---|
| Manufacturer: | Bel Power Solutions |
| Product Category: | AC DC Converters |
| Available Quantity: | 9045 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 24V 113W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MBC225-1T24L Datasheet |
| Internal Part Number | 898-MBC225-1T24L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | MBC Series Power Supplies ABC/MBC Low-Profile Series Power Supplies Power Solutions and Protection | |
| Online Catalog | MBC225 Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | Bel Power Solutions | |
| Series | MBC225 | |
| Part Status | Active | |
| Type | Open Frame | |
| Number of Outputs | 1 | |
| Voltage - Input | 85 ~ 264 VAC | |
| Voltage - Output 1 | 24V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 4.68A | |
| Power (Watts) | 113W (225W Forced Air) | |
| Applications | Medical | |
| Voltage - Isolation | 4.0kV (4000V) | |
| Efficiency | 93% | |
| Operating Temperature | -40°C ~ 70°C (With Derating) | |
| Features | DC Input Capable, PFC, Standby Output, Universal Input | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | |
| Minimum Load Required | No | |
| Approvals | CE | |
| Power (Watts) - Max | 113W (225W Forced Air) | |
| Standard Package | 72 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MBC225-1T24L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MBC225-1T24L is in stock for immediate shipping now. We are the distributor of Bel Power Solutions all series components. The condition of MBC225-1T24L is new and unused, you can buy MBC225-1T24L Bel Power Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MBC225-1T24L.
