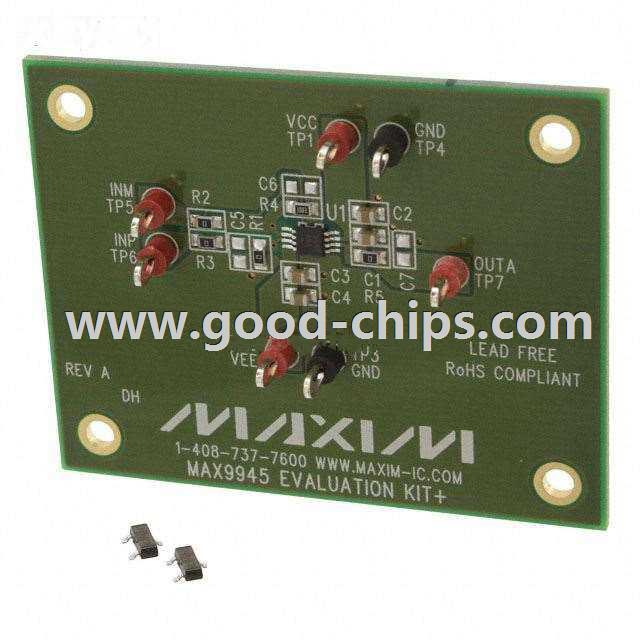

| Manufacturer Part Number: | MAX9945EVKIT+ |
|---|---|
| Manufacturer: | Maxim Integrated |
| Product Category: | Evaluation Boards - Op Amps |
| Available Quantity: | 9014 Pieces |
| Unit Price: | Quote by Email |
| Description: | MAX9945 1 - Single Channels per IC General Purpose Amplifier Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MAX9945EVKIT+ Datasheet |
| Internal Part Number | 898-MAX9945EVKIT+ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Lead (SnPb) Finish for COTS Long-Term Supply Program | |
| Design Resources | Development Tool Selector | |
| Online Catalog | MAX9945 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Op Amps | |
| Manufacturer | Maxim Integrated | |
| Series | - | |
| Part Status | Active | |
| Channels per IC | 1 - Single | |
| Amplifier Type | General Purpose | |
| Output Type | Single-Ended, Rail-to-Rail | |
| Slew Rate | 2.2 V/µs | |
| -3db Bandwidth | - | |
| Current - Output / Channel | 25mA | |
| Operating Temperature | -40°C ~ 125°C | |
| Current - Supply (Main IC) | 400µA | |
| Voltage - Supply, Single/Dual (±) | 4.75 V ~ 38 V, ±2.4 V ~ 19 V | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | MAX9945 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MAX9945EVKIT+ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MAX9945EVKIT+ is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MAX9945EVKIT+ is new and unused, you can buy MAX9945EVKIT+ Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAX9945EVKIT+.
