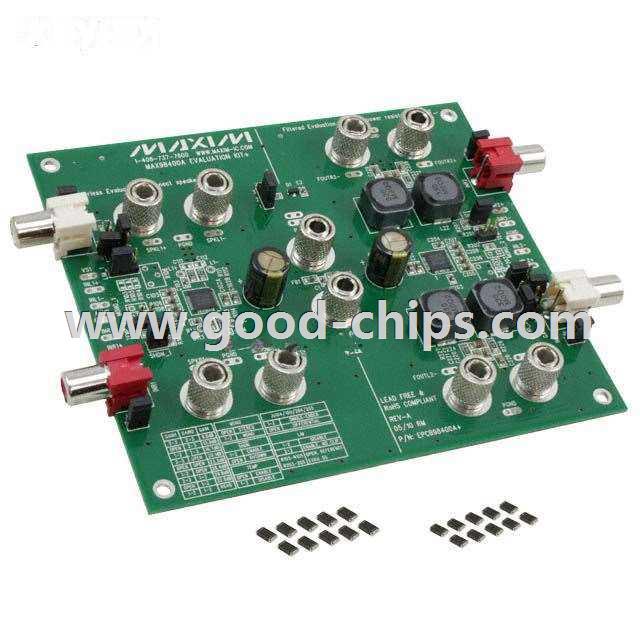

| Manufacturer Part Number: | MAX98400AEVKIT+ |
|---|---|
| Manufacturer: | Maxim Integrated |
| Product Category: | Evaluation Boards - Audio Amplifiers |
| Available Quantity: | 9017 Pieces |
| Unit Price: | Quote by Email |
| Description: | MAX98400A - 2-Channel (Stereo) Output Class D Audio Amplifier Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MAX98400AEVKIT+ Datasheet |
| Internal Part Number | 898-MAX98400AEVKIT+ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Simple Wireless Bluetooth Stereo Audio System for Outdoor Use Pack Your Music and Upcycle That Old Suitcase | |
| Product Training Modules | Lead (SnPb) Finish for COTS Long-Term Supply Program | |
| Design Resources | Development Tool Selector | |
| Featured Product | Maxim - MAX98400 | |
| Reference Design Library | MAX98400AEVKIT+: Class D, 2.1, 20W x 2 + 44W Sub | |
| Online Catalog | MAX98400A and MAX98400B Evaluation Kits | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Audio Amplifiers | |
| Manufacturer | Maxim Integrated | |
| Series | - | |
| Part Status | Active | |
| Amplifier Type | Class D | |
| Output Type | 2-Channel (Stereo) | |
| Max Output Power x Channels @ Load | 20W x 2 @ 8 Ohm | |
| Voltage - Supply | 8 V ~ 28 V | |
| Board Type | Fully Populated | |
| Utilized IC / Part | MAX98400A | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MAX98400AEVKIT+ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MAX98400AEVKIT+ is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MAX98400AEVKIT+ is new and unused, you can buy MAX98400AEVKIT+ Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAX98400AEVKIT+.
