Manufacturer Part Number: | MAX97220AEVKIT+ |
---|---|
Manufacturer: | Maxim Integrated |
Product Category: | Evaluation Boards - Audio Amplifiers |
Available Quantity: | 9013 Pieces |
Unit Price: | Quote by Email |

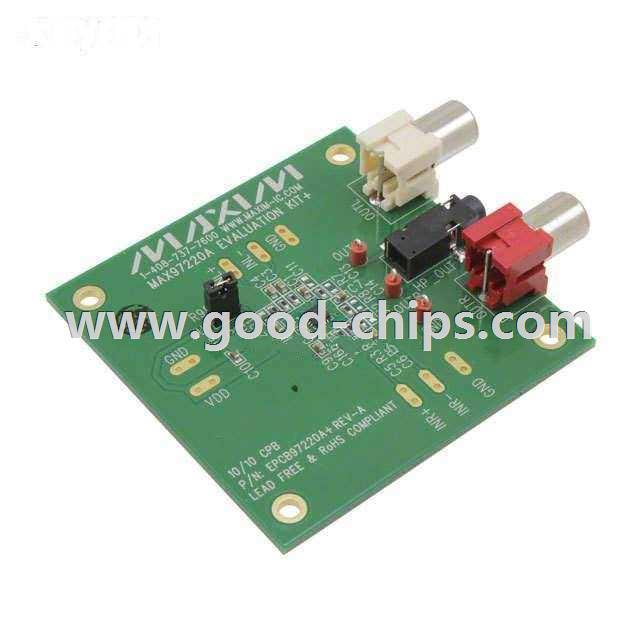

Description: | MAX97220A DirectDrive® Headphones, 2-Channel (Stereo) Output Class AB Audio Amplifier Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MAX97220AEVKIT+ Datasheet |
Internal Part Number | 898-MAX97220AEVKIT+ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Online Catalog | MAX97220 Evaluation Kit | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Audio Amplifiers | |
Manufacturer | Maxim Integrated | |
Series | DirectDrive® | |
Part Status | Active | |
Amplifier Type | Class AB | |
Output Type | Headphones, 2-Channel (Stereo) | |
Max Output Power x Channels @ Load | 125mW x 2 @ 32 Ohm | |
Voltage - Supply | 2.5 V ~ 5.5 V | |
Board Type | Fully Populated | |
Utilized IC / Part | MAX97220A | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MAX97220AEVKIT+ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MAX97220AEVKIT+ is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MAX97220AEVKIT+ is new and unused, you can buy MAX97220AEVKIT+ Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAX97220AEVKIT+.
