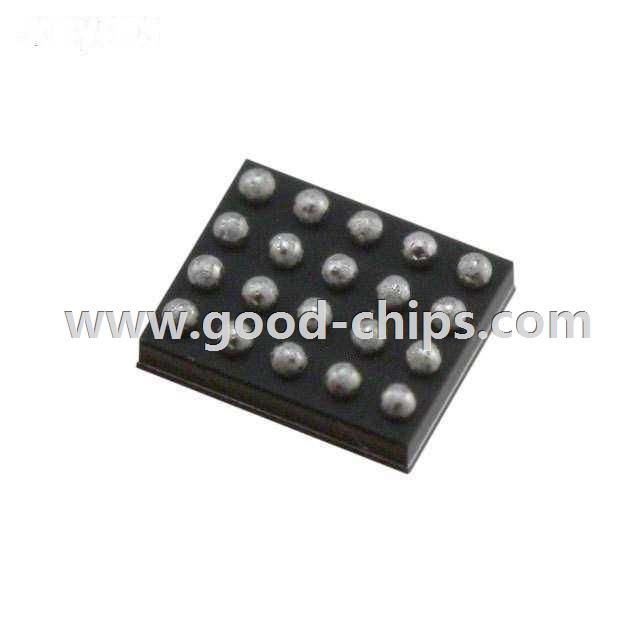

Manufacturer Part Number: | MAX97001EWP+T |
---|---|
Manufacturer: | Maxim Integrated |
Product Category: | Linear - Amplifiers - Audio |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Amplifier IC 1-Channel (Mono) with Stereo Headphones Class D 20-WLP (2.52x2.08) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MAX97001EWP+T Datasheet |
Internal Part Number | 898-MAX97001EWP+T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Mfg Application Notes | Simple Circuit Limits Amplifier's Output | |
Product Training Modules | Lead (SnPb) Finish for COTS Long-Term Supply Program | |
Category | Integrated Circuits (ICs) | |
Family | Linear - Amplifiers - Audio | |
Manufacturer | Maxim Integrated | |
Series | DirectDrive® | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Class D | |
Output Type | 1-Channel (Mono) with Stereo Headphones | |
Max Output Power x Channels @ Load | 920mW x 1 @ 8 Ohm; 37mW x 2 @ 16 Ohm | |
Voltage - Supply | 2.7 V ~ 5.5 V | |
Features | Depop, Differential Inputs, I²C, Mute, Shutdown, Volume Control | |
Mounting Type | Surface Mount | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Supplier Device Package | 20-WLP (2.52x2.08) | |
Package / Case | 20-WFBGA, WLBGA | |
Standard Package | 2,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MAX97001EWP+T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MAX97001EWP+T is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MAX97001EWP+T is new and unused, you can buy MAX97001EWP+T Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAX97001EWP+T.
