| Manufacturer Part Number: | MAX9260EVKIT+ |
|---|---|
| Manufacturer: | Maxim Integrated |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |

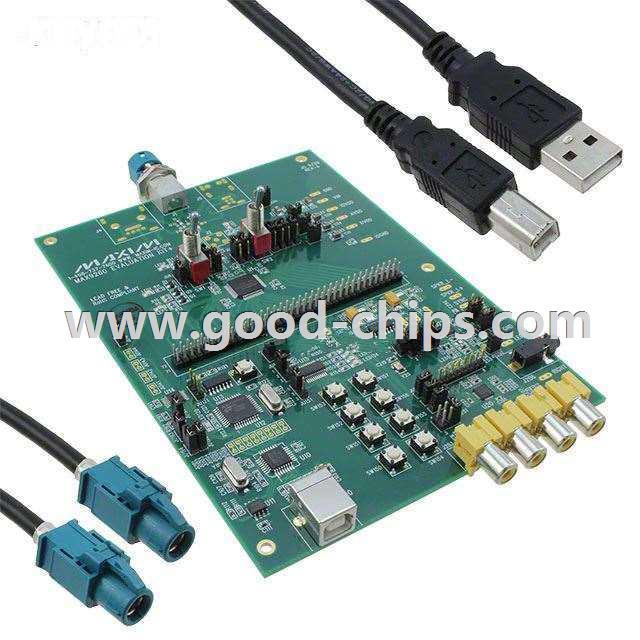

| Description: | MAX9260 - Interface, Deserializer Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MAX9260EVKIT+ Datasheet |
| Internal Part Number | 898-MAX9260EVKIT+ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Proper Power-Supply Jumper Settings for Evaluating the MAX9259/MAX9260 SerDes Chipset Using 2.5Gbps SerDes with Built-In Bit-Error Rate Test Circuitry Makes Measuring Link Quality Easy | |
| Design Resources | Development Tool Selector | |
| Online Catalog | MAX9260 Evaluation Kit | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Maxim Integrated | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Interface, Deserializer | |
| Embedded | Yes, MCU, 8-Bit | |
| Utilized IC / Part | MAX9260 | |
| Primary Attributes | - | |
| Secondary Attributes | Graphical User Interface | |
| Supplied Contents | Board, Cable | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MAX9260EVKIT+ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MAX9260EVKIT+ is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MAX9260EVKIT+ is new and unused, you can buy MAX9260EVKIT+ Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAX9260EVKIT+.
