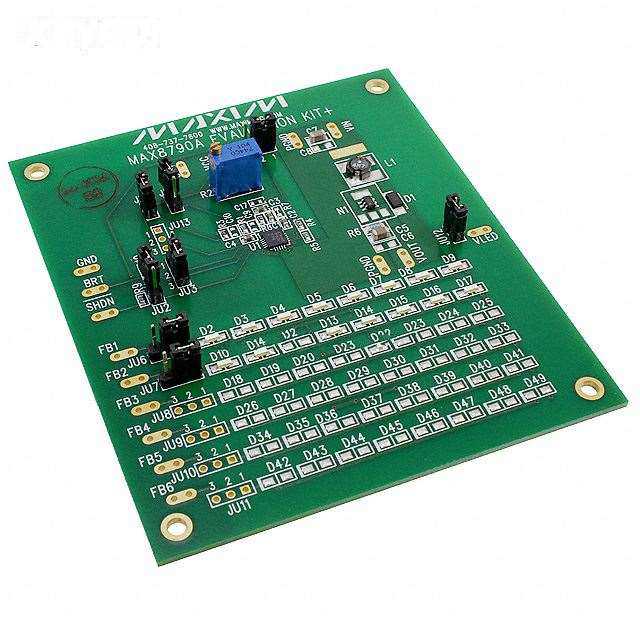

| Manufacturer Part Number: | MAX8790AEVKIT+ |
|---|---|
| Manufacturer: | Maxim Integrated |
| Product Category: | Evaluation Boards - LED Drivers |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |
| Description: | MAX8790A 6, Non-Isolated Output LED Driver Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MAX8790AEVKIT+ Datasheet |
| Internal Part Number | 898-MAX8790AEVKIT+ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector Lighting Product Selector | |
| Online Catalog | MAX8790A Evaluation Kit | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - LED Drivers | |
| Manufacturer | Maxim Integrated | |
| Series | - | |
| Part Status | Active | |
| Current - Output / Channel | 25mA | |
| Outputs and Type | 6, Non-Isolated | |
| Voltage - Output | - | |
| Features | Dimmable | |
| Voltage - Input | 7 V ~ 21 V | |
| Supplied Contents | Board | |
| Utilized IC / Part | MAX8790A | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MAX8790AEVKIT+ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MAX8790AEVKIT+ is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MAX8790AEVKIT+ is new and unused, you can buy MAX8790AEVKIT+ Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAX8790AEVKIT+.
