| Manufacturer Part Number: | MAX7456EVKIT+ |
|---|---|
| Manufacturer: | Maxim Integrated |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

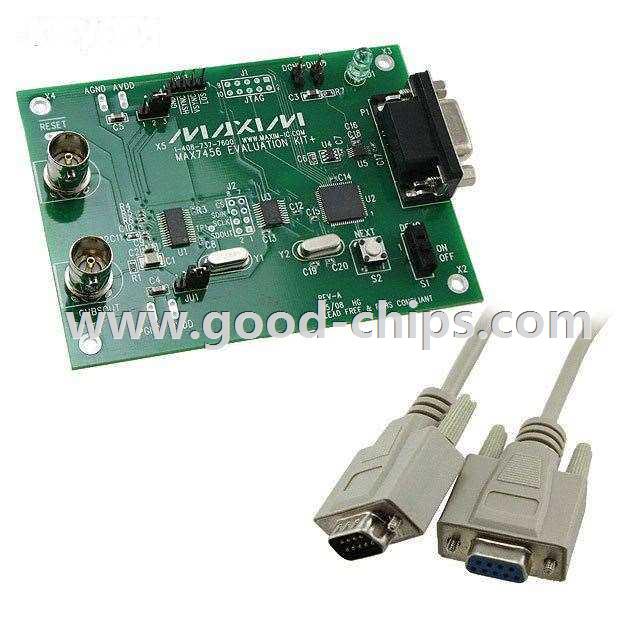

| Description: | MAX7456 - Video, On-Screen Display (OSD) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MAX7456EVKIT+ Datasheet |
| Internal Part Number | 898-MAX7456EVKIT+ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Lead (SnPb) Finish for COTS Long-Term Supply Program | |
| Design Resources | Development Tool Selector | |
| PCN Obsolescence/ EOL | EOL 15/Jan/2016 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Maxim Integrated | |
| Series | - | |
| Part Status | Obsolete | |
| Main Purpose | Video, On-Screen Display (OSD) | |
| Embedded | Yes, MCU, 16-Bit | |
| Utilized IC / Part | MAX7456 | |
| Primary Attributes | NTSC/PAL single-channel monochrome on-screen display (OSD) with integrated video driver | |
| Secondary Attributes | GUI, SPI Interfaces | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MAX7456EVKIT+ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MAX7456EVKIT+ is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MAX7456EVKIT+ is new and unused, you can buy MAX7456EVKIT+ Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAX7456EVKIT+.
