| Manufacturer Part Number: | MAX5705BATB+T |
|---|---|
| Manufacturer: | Maxim Integrated |
| Product Category: | Data Acquisition - Digital to Analog Converters (DAC) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 12 Bit Digital to Analog Converter 1 10-TDFN (3x2) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MAX5705BATB+T Datasheet |
| Internal Part Number | 898-MAX5705BATB+T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Scaling Power-Supply Slopes with a Reliable Power-On Reset (POR) | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - Digital to Analog Converters (DAC) | |
| Manufacturer | Maxim Integrated | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Number of Bits | 12 | |
| Number of D/A Converters | 1 | |
| Settling Time | 6.3µs (Typ) | |
| Output Type | Voltage - Buffered | |
| Differential Output | No | |
| Data Interface | SPI, DSP | |
| Reference Type | External, Internal | |
| Voltage - Supply, Analog | 2.7 V ~ 5.5 V | |
| Voltage - Supply, Digital | 2.7 V ~ 5.5 V | |
| INL/DNL (LSB) | ±0.5, ±0.2 | |
| Architecture | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Package / Case | 10-WFDFN Exposed Pad | |

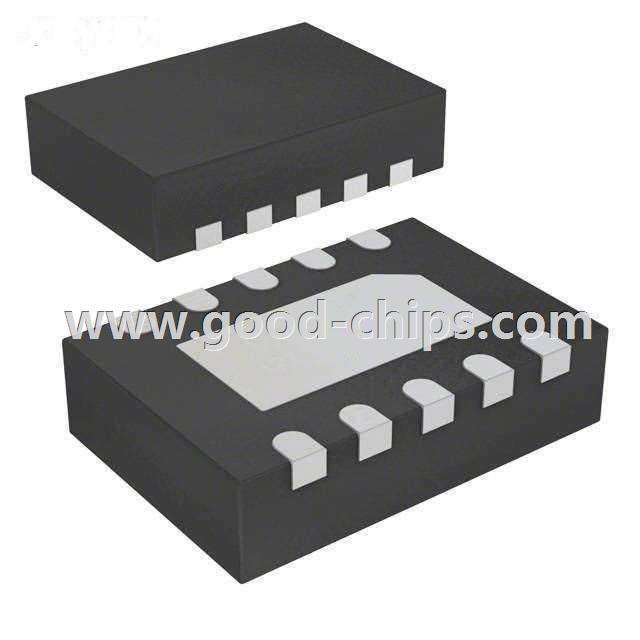

| Supplier Device Package | 10-TDFN (3x2) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MAX5705BATB+T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MAX5705BATB+T is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MAX5705BATB+T is new and unused, you can buy MAX5705BATB+T Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAX5705BATB+T.
