| Manufacturer Part Number: | MAX5066EVKIT |
|---|---|
| Manufacturer: | Maxim Integrated |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9016 Pieces |
| Unit Price: | Quote by Email |

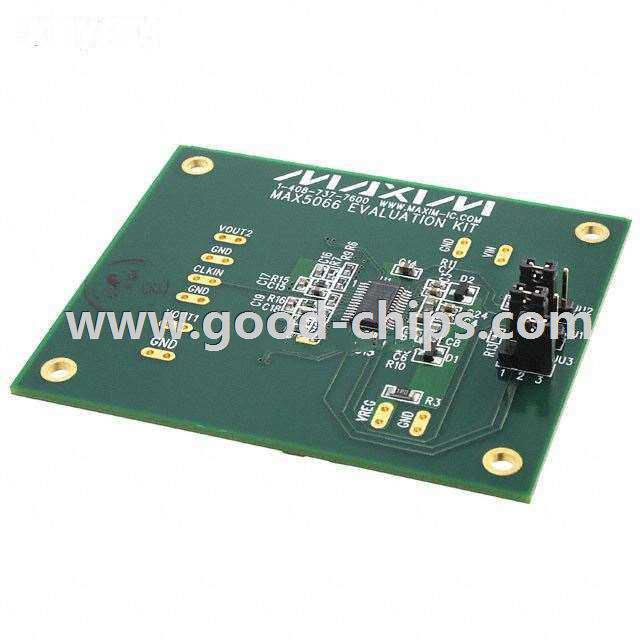

| Description: | MAX5066 - DC/DC, Step Down 2, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MAX5066EVKIT Datasheet |
| Internal Part Number | 898-MAX5066EVKIT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Lead (SnPb) Finish for COTS Long-Term Supply Program | |
| Design Resources | Development Tool Selector | |
| Online Catalog | MAX5066 Evaluation Kit | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Maxim Integrated | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Down | |
| Outputs and Type | 2, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 0.8V, 1.3V | |
| Current - Output | 10A, 10A | |
| Voltage - Input | 5 V ~ 16 V | |
| Regulator Topology | Buck | |
| Frequency - Switching | 500kHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | MAX5066 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MAX5066EVKIT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MAX5066EVKIT is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MAX5066EVKIT is new and unused, you can buy MAX5066EVKIT Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAX5066EVKIT.
