| Manufacturer Part Number: | MAX4523EGE+ |
|---|---|
| Manufacturer: | Maxim Integrated |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4 Circuit IC Switch 1:1 100 Ohm 16-QFN-EP (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MAX4523EGE+ Datasheet |
| Internal Part Number | 898-MAX4523EGE+ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Maxim Integrated | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Switch Circuit | SPST - NO/NC | |
| Multiplexer/Demultiplexer Circuit | 1:1 | |
| Number of Circuits | 4 | |
| On-State Resistance (Max) | 100 Ohm | |
| Channel-to-Channel Matching (ΔRon) | 1 Ohm | |
| Voltage - Supply, Single (V+) | 2 V ~ 12 V | |
| Voltage - Supply, Dual (V±) | ±2 V ~ 6 V | |
| Switch Time (Ton, Toff) (Max) | 80ns, 30ns | |
| -3db Bandwidth | - | |
| Charge Injection | 1pC | |
| Channel Capacitance (CS(off), CD(off)) | 2pF, 2pF | |
| Current - Leakage (IS(off)) (Max) | 1nA | |
| Crosstalk | -90dB @ 100kHz | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

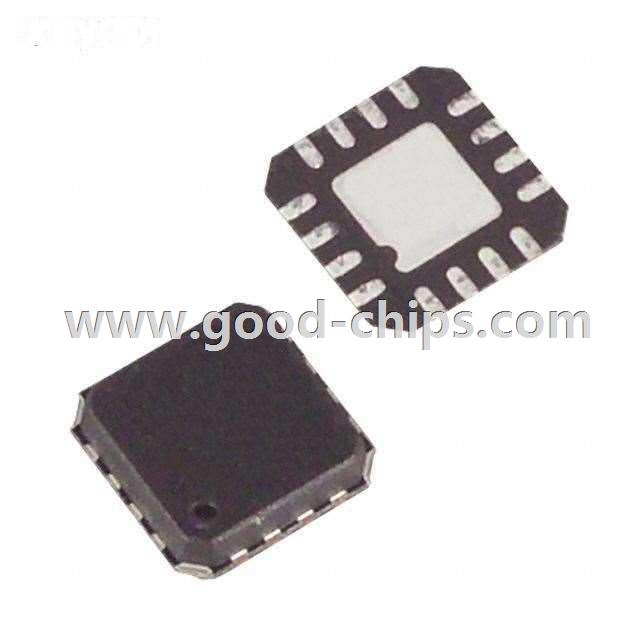

| Package / Case | 16-VQFN Exposed Pad | |
| Supplier Device Package | 16-QFN-EP (4x4) | |
| Standard Package | 75 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MAX4523EGE+ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MAX4523EGE+ is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MAX4523EGE+ is new and unused, you can buy MAX4523EGE+ Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAX4523EGE+.
