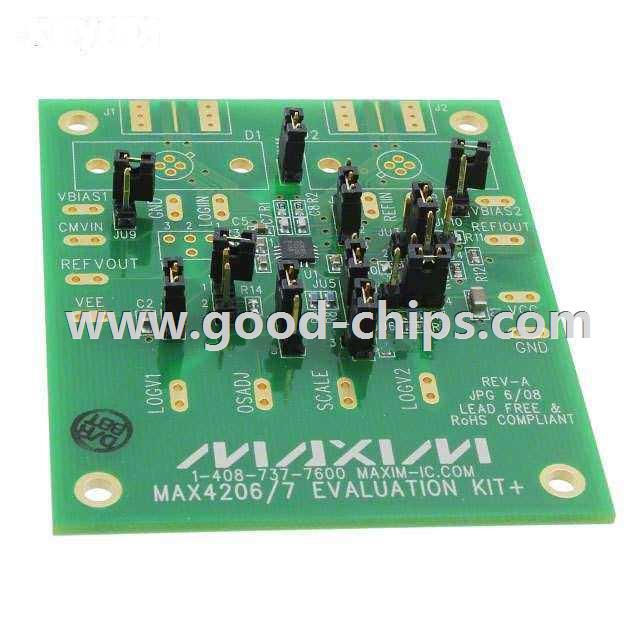

Manufacturer Part Number: | MAX4206EVKIT+ |
---|---|
Manufacturer: | Maxim Integrated |
Product Category: | Evaluation Boards - Op Amps |
Available Quantity: | 9023 Pieces |
Unit Price: | Quote by Email |
Description: | MAX4206 1 - Single Channels per IC Logarithmic Amplifier Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MAX4206EVKIT+ Datasheet |
Internal Part Number | 898-MAX4206EVKIT+ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Online Catalog | MAX4206 Evaluation Kit | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Op Amps | |
Manufacturer | Maxim Integrated | |
Series | - | |
Part Status | Active | |
Channels per IC | 1 - Single | |
Amplifier Type | Logarithmic | |
Output Type | Single-Ended | |
Slew Rate | 12 V/µs | |
-3db Bandwidth | - | |
Current - Output / Channel | 58mA | |
Operating Temperature | 0°C ~ 70°C | |
Current - Supply (Main IC) | 5mA | |
Voltage - Supply, Single/Dual (±) | 2.7 V ~ 11 V, ±2.7 V ~ 5.5 V | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | MAX4206 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MAX4206EVKIT+ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MAX4206EVKIT+ is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MAX4206EVKIT+ is new and unused, you can buy MAX4206EVKIT+ Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAX4206EVKIT+.
