Manufacturer Part Number: | MAX16977RAUE/V+ |
---|---|
Manufacturer: | Maxim Integrated |
Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Buck Switching Regulator IC Positive Adjustable (Fixed) 1V (5V) 1 Output 2A 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MAX16977RAUE/V+ Datasheet |
Internal Part Number | 898-MAX16977RAUE/V+ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | Buck (Step-Down) IC | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
Manufacturer | Maxim Integrated | |
Series | Automotive, AEC-Q100 | |
Packaging | Tube | |
Part Status | Active | |
Function | Step-Down | |
Output Configuration | Positive | |
Topology | Buck | |
Output Type | Adjustable (Fixed) | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 3.5V | |
Voltage - Input (Max) | 36V | |
Voltage - Output (Min/Fixed) | 1V (5V) | |
Voltage - Output (Max) | 10V | |
Current - Output | 2A | |
Frequency - Switching | 2.2MHz | |
Synchronous Rectifier | No | |
Operating Temperature | -40°C ~ 125°C (TJ) | |
Mounting Type | Surface Mount | |

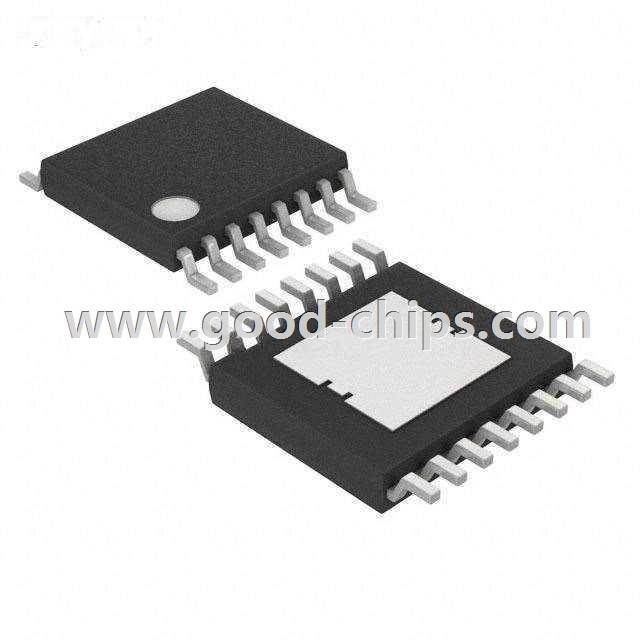

Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | |
Supplier Device Package | 16-TSSOP-EP | |
Standard Package | 96 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MAX16977RAUE/V+ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MAX16977RAUE/V+ is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MAX16977RAUE/V+ is new and unused, you can buy MAX16977RAUE/V+ Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAX16977RAUE/V+.
