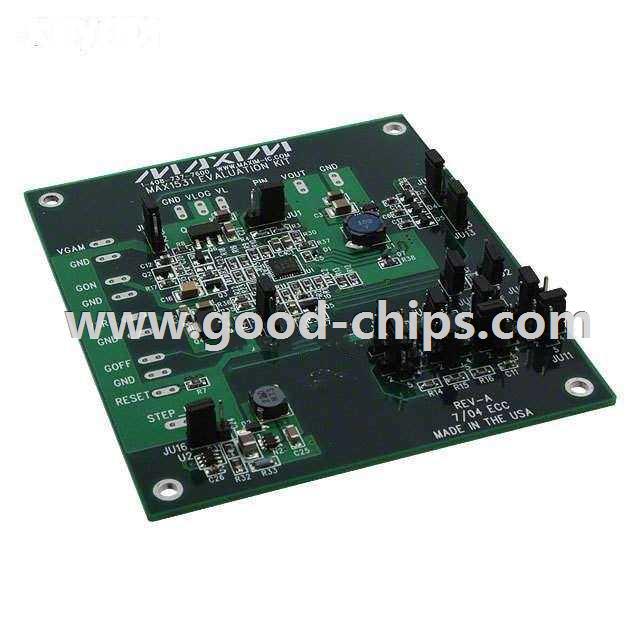

Manufacturer Part Number: | MAX1531EVKIT |
---|---|
Manufacturer: | Maxim Integrated |
Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
Available Quantity: | 9011 Pieces |
Unit Price: | Quote by Email |
Description: | MAX1531 - Special Purpose DC/DC, LCD Supply 6, Non-Isolated Outputs Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MAX1531EVKIT Datasheet |
Internal Part Number | 898-MAX1531EVKIT | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Featured Product | MAX1531 Multiple-Output Power-Supply Controllers | |
PCN Obsolescence/ EOL | Multiple Devices 17/Feb/2015 | |
PCN Part Status Change | Reactivation 17/Feb/2016 | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
Manufacturer | Maxim Integrated | |
Series | - | |
Part Status | Active | |
Main Purpose | Special Purpose DC/DC, LCD Supply | |
Outputs and Type | 6, Non-Isolated | |
Power - Output | - | |
Voltage - Output | 2.5V, 3.3V, 9.7V, 10V, 25V, -9V | |
Current - Output | 1.5A, 500mA, 500mA, 50mA, 50mA, 25mA | |
Voltage - Input | 10.5 V ~ 24 V | |
Regulator Topology | Boost, Buck, Inverting | |
Frequency - Switching | 250kHz or 500kHz | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | MAX1531 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MAX1531EVKIT | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MAX1531EVKIT is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MAX1531EVKIT is new and unused, you can buy MAX1531EVKIT Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAX1531EVKIT.
