| Manufacturer Part Number: | MASWSS0103TR |
|---|---|
| Manufacturer: | M/A-Com Technology Solutions |
| Product Category: | RF Switches |
| Available Quantity: | 10010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Switch IC CATV SPDT 1GHz 75 Ohm 20-PQFN (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MASWSS0103TR Datasheet |
| Internal Part Number | 898-MASWSS0103TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| PCN Assembly/Origin | Assembly Site Addition 16/Jan/2015 | |
| Online Catalog | MASWSS0103 | |
| Category | RF/IF and RFID | |
| Family | RF Switches | |
| Manufacturer | M/A-Com Technology Solutions | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency - Lower | 5MHz | |
| Frequency - Upper | 1GHz | |
| Isolation @ Frequency | 63dB @ 1GHz (typ) | |
| Insertion Loss @ Frequency | 1dB @ 1GHz | |
| IIP3 | - | |
| Topology | Absorptive | |
| Circuit | SPDT | |
| P1dB | - | |
| Features | - | |
| Impedance | 75 Ohm | |
| Operating Temperature | -40°C ~ 85°C | |
| Voltage - Supply | - | |
| RF Type | CATV | |

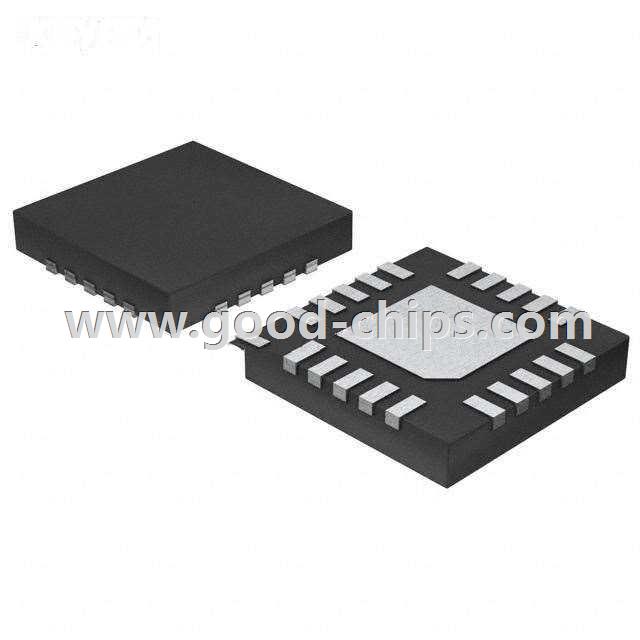

| Package / Case | 20-VFQFN Exposed Pad | |
| Supplier Device Package | 20-PQFN (4x4) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MASWSS0103TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MASWSS0103TR is in stock for immediate shipping now. We are the distributor of M/A-Com Technology Solutions all series components. The condition of MASWSS0103TR is new and unused, you can buy MASWSS0103TR M/A-Com Technology Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MASWSS0103TR.
