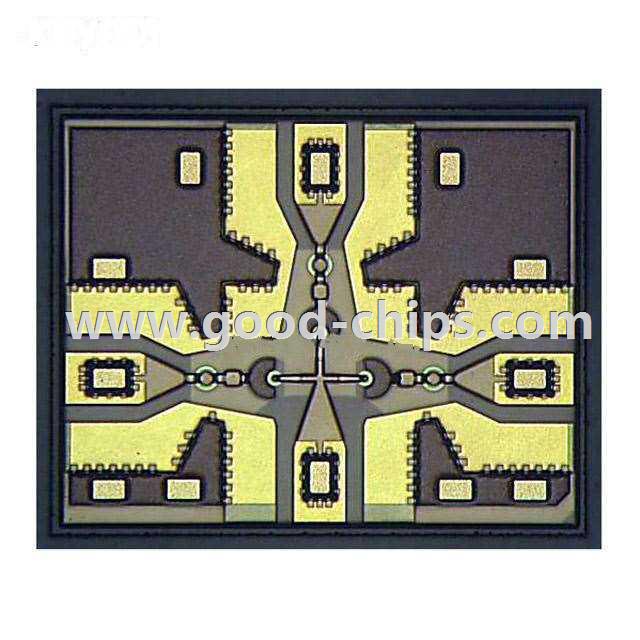

| Manufacturer Part Number: | MASW-003103-13645P |
|---|---|
| Manufacturer: | M/A-Com Technology Solutions |
| Product Category: | RF Switches |
| Available Quantity: | 9510 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Switch IC General Purpose SP3T 20GHz 50 Ohm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MASW-003103-13645P Datasheet |
| Internal Part Number | 898-MASW-003103-13645P | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Heterolithic Microwave Integrated Circuit Products | |
| Design Resources | IoT Product Selector | |
| Online Catalog | MASW-003103-13645 | |
| Category | RF/IF and RFID | |
| Family | RF Switches | |
| Manufacturer | M/A-Com Technology Solutions | |
| Series | HMIC™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency - Lower | 50MHz | |
| Frequency - Upper | 20GHz | |
| Isolation @ Frequency | 31dB @ 20GHz (typ) | |
| Insertion Loss @ Frequency | 1.2dB @ 20GHz | |
| IIP3 | - | |
| Topology | - | |
| Circuit | SP3T | |
| P1dB | - | |
| Features | - | |
| Impedance | 50 Ohm | |
| Operating Temperature | -65°C ~ 150°C | |
| Voltage - Supply | -10V | |
| RF Type | General Purpose | |
| Package / Case | 4-SMD Module Exposed Pad | |
| Supplier Device Package | - | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MASW-003103-13645P | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MASW-003103-13645P is in stock for immediate shipping now. We are the distributor of M/A-Com Technology Solutions all series components. The condition of MASW-003103-13645P is new and unused, you can buy MASW-003103-13645P M/A-Com Technology Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MASW-003103-13645P.
