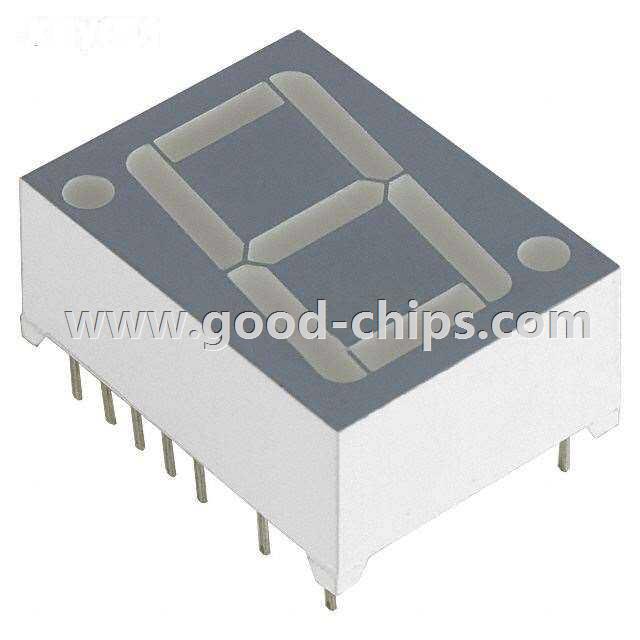

| Manufacturer Part Number: | MAN8610 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Display Modules - LED Character and Numeric |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LED Display Module Orange-Red 7-Segment 1 Character Common Anode 2.5V (Max) 20mA 0.985" H x 0.735" W x 0.415" D (25.02mm x 18.67mm x 10.54mm) 14-DIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MAN8610 Datasheet |
| Internal Part Number | 898-MAN8610 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Character and Numeric | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Number of Characters | 1 | |
| Size / Dimension | 0.985" H x 0.735" W x 0.415" D (25.02mm x 18.67mm x 10.54mm) | |
| Digit/Alpha Size | 0.80" (20.32mm) | |
| Display Type | 7-Segment | |
| Common Pin | Common Anode | |
| Color | Orange-Red | |
| Voltage - Forward (Vf) (Typ) | 2.5V (Max) | |
| Current - Test | 20mA | |
| Millicandela Rating | 2.2mcd | |
| Wavelength - Peak | 630nm | |
| Power Dissipation (Max) | 600mW | |
| Package / Case | 14-DIP | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MAN8610 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MAN8610 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of MAN8610 is new and unused, you can buy MAN8610 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAN8610.
