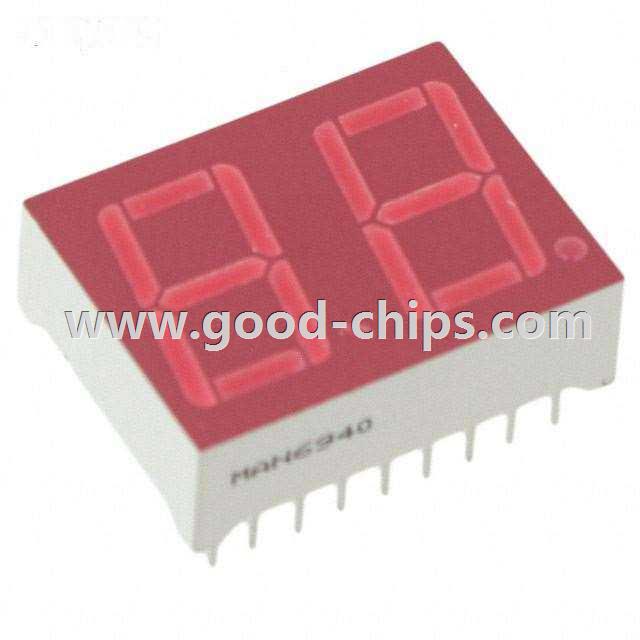

| Manufacturer Part Number: | MAN6940 |
|---|---|
| Manufacturer: | Everlight Electronics Co Ltd |
| Product Category: | Display Modules - LED Character and Numeric |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LED Display Module Red 7-Segment 2 Character Common Cathode 2.5V (Max) 20mA 0.750" H x 0.985" W x 0.315" D (19.05mm x 25.02mm x 8.00mm) 18-DIP (0.600", 15.24mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MAN6940 Datasheet |
| Internal Part Number | 898-MAN6940 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | MAN6900 Series | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Character and Numeric | |
| Manufacturer | Everlight Electronics Co Ltd | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Number of Characters | 2 | |
| Size / Dimension | 0.750" H x 0.985" W x 0.315" D (19.05mm x 25.02mm x 8.00mm) | |
| Digit/Alpha Size | 0.56" (14.22mm) | |
| Display Type | 7-Segment | |
| Common Pin | Common Cathode | |
| Color | Red | |
| Voltage - Forward (Vf) (Typ) | 2.5V (Max) | |
| Current - Test | 20mA | |
| Millicandela Rating | 2.2mcd | |
| Wavelength - Peak | 635nm | |
| Power Dissipation (Max) | 1.2W | |
| Package / Case | 18-DIP (0.600", 15.24mm) | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MAN6940 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MAN6940 is in stock for immediate shipping now. We are the distributor of Everlight Electronics Co Ltd all series components. The condition of MAN6940 is new and unused, you can buy MAN6940 Everlight Electronics Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAN6940.
