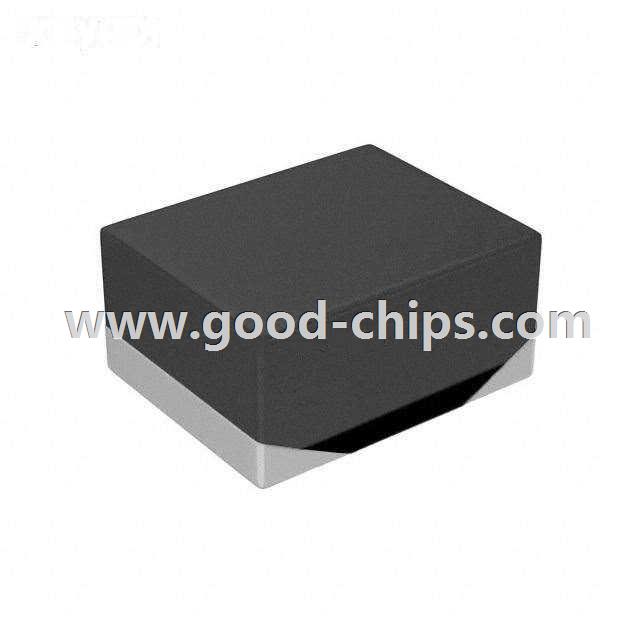

| Manufacturer Part Number: | MAMK2520T3R3M |
|---|---|
| Manufacturer: | Taiyo Yuden |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 3.3µH Shielded Wirewound Inductor 1.7A 156 mOhm Max 1008 (2520 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MAMK2520T3R3M Datasheet |
| Internal Part Number | 898-MAMK2520T3R3M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | MCOIL™ Inductor | |
| Online Catalog | MCOIL™, MA Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Taiyo Yuden | |
| Series | MCOIL™, MA | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Metal | |
| Inductance | 3.3µH | |
| Tolerance | ±20% | |
| Current Rating | 1.7A | |
| Current - Saturation | 1.8A | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 156 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Frequency - Test | 2MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 1008 (2520 Metric) | |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
| Height - Seated (Max) | 0.047" (1.20mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MAMK2520T3R3M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MAMK2520T3R3M is in stock for immediate shipping now. We are the distributor of Taiyo Yuden all series components. The condition of MAMK2520T3R3M is new and unused, you can buy MAMK2520T3R3M Taiyo Yuden with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAMK2520T3R3M.
