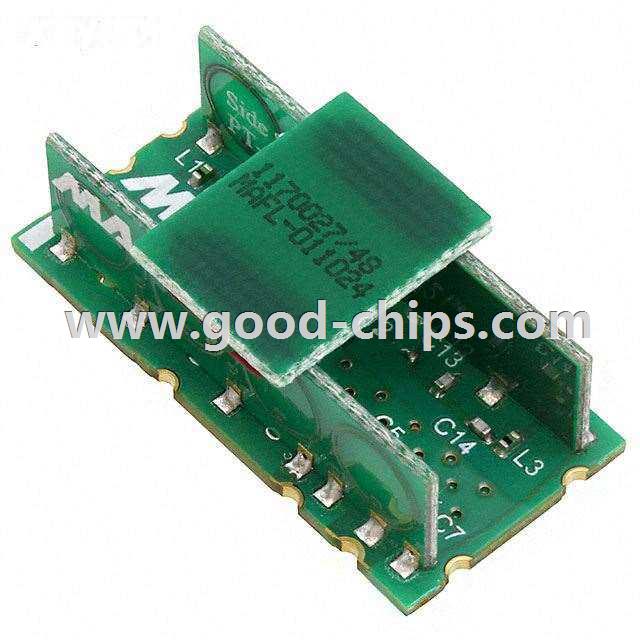

| Manufacturer Part Number: | MAFL-011024 |
|---|---|
| Manufacturer: | M/A-Com Technology Solutions |
| Product Category: | RF Diplexers |
| Available Quantity: | 9610 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Diplexor 5MHz ~ 85MHz / 108MHz ~ 1.002GHz 11-SMD Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MAFL-011024 Datasheet |
| Internal Part Number | 898-MAFL-011024 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Featured Product | MAFL-011013/011024 Surface Mount Diplexers | |
| Online Catalog | MAFL-011024 | |
| Category | RF/IF and RFID | |
| Family | RF Diplexers | |
| Manufacturer | M/A-Com Technology Solutions | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency Bands (Low / High) | 5MHz ~ 85MHz / 108MHz ~ 1.002GHz | |
| Low Band Attenuation (min / max dB) | - | |
| High Band Attenuation (min / max dB) | - | |
| Return Loss (Low Band / High Band) | 16dB / 16dB | |
| Mounting Type | Surface Mount | |
| Package / Case | 11-SMD Module | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MAFL-011024 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MAFL-011024 is in stock for immediate shipping now. We are the distributor of M/A-Com Technology Solutions all series components. The condition of MAFL-011024 is new and unused, you can buy MAFL-011024 M/A-Com Technology Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAFL-011024.
