| Manufacturer Part Number: | MA4P504-1072T |
|---|---|
| Manufacturer: | M/A-Com Technology Solutions |
| Product Category: | Diodes - RF |
| Available Quantity: | 13510 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Diode PIN - Single 500V 7.5W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MA4P504-1072T Datasheet |
| Internal Part Number | 898-MA4P504-1072T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | PIN Diodes | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - RF | |
| Manufacturer | M/A-Com Technology Solutions | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | PIN - Single | |
| Voltage - Peak Reverse (Max) | 500V | |
| Current - Max | - | |
| Capacitance @ Vr, F | 0.5pF @ 100V, 1MHz | |
| Resistance @ If, F | 600 mOhm @ 100mA, 100MHz | |
| Power Dissipation (Max) | 7.5W | |

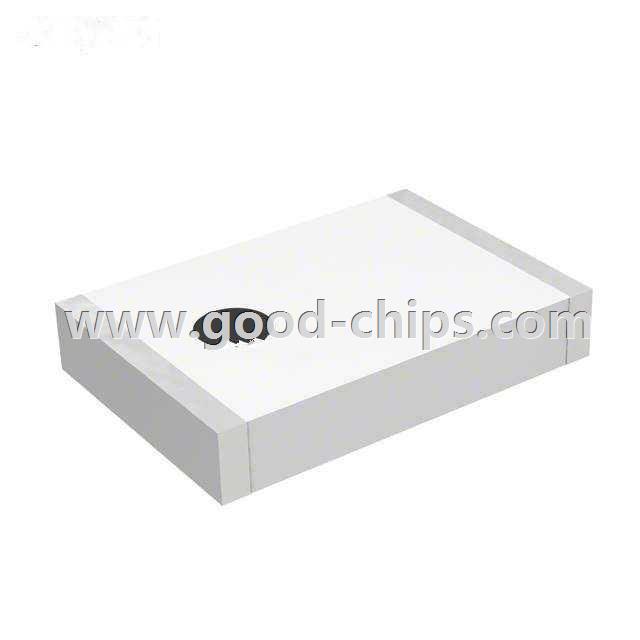

| Package / Case | 2-SMD | |
| Supplier Device Package | - | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MA4P504-1072T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MA4P504-1072T is in stock for immediate shipping now. We are the distributor of M/A-Com Technology Solutions all series components. The condition of MA4P504-1072T is new and unused, you can buy MA4P504-1072T M/A-Com Technology Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MA4P504-1072T.
