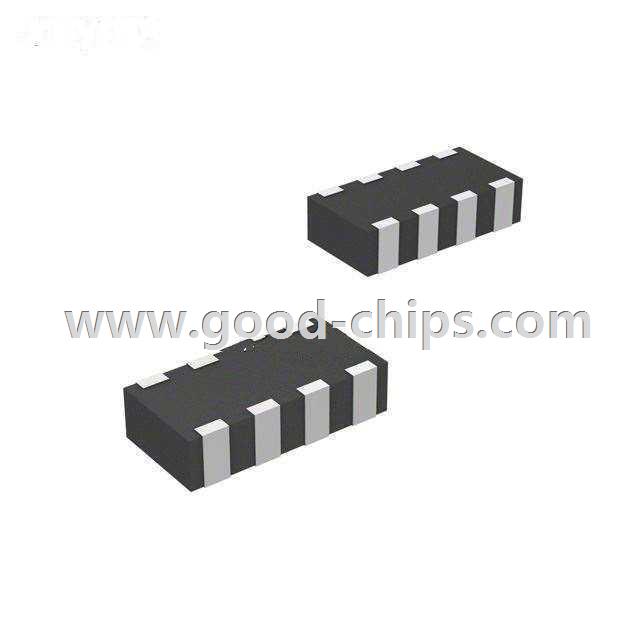

Manufacturer Part Number: | MA3216-121M4 |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Ferrite Beads and Chips |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 120 Ohm Impedance Ferrite Bead 1206 (3216 Metric), Array, 8 PC Pad Surface Mount 100mA 4 Lines 200 mOhm Max DCR -55°C ~ 125°C |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MA3216-121M4 Datasheet |
Internal Part Number | 898-MA3216-121M4 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | MA3216 Series Material Declaration | |
PCN Obsolescence/ EOL | Model MA Series May/2014 | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Filters | |
Family | Ferrite Beads and Chips | |
Manufacturer | Bourns Inc. | |
Series | MA | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Filter Type | - | |
Number of Lines | 4 | |
Impedance @ Frequency | 120 Ohm @ 100MHz | |
Current Rating (Max) | 100mA | |
DC Resistance (DCR) (Max) | 200 mOhm | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Package / Case | 1206 (3216 Metric), Array, 8 PC Pad | |
Mounting Type | Surface Mount | |
Height (Max) | 0.035" (0.90mm) | |
Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MA3216-121M4 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MA3216-121M4 is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of MA3216-121M4 is new and unused, you can buy MA3216-121M4 Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MA3216-121M4.
