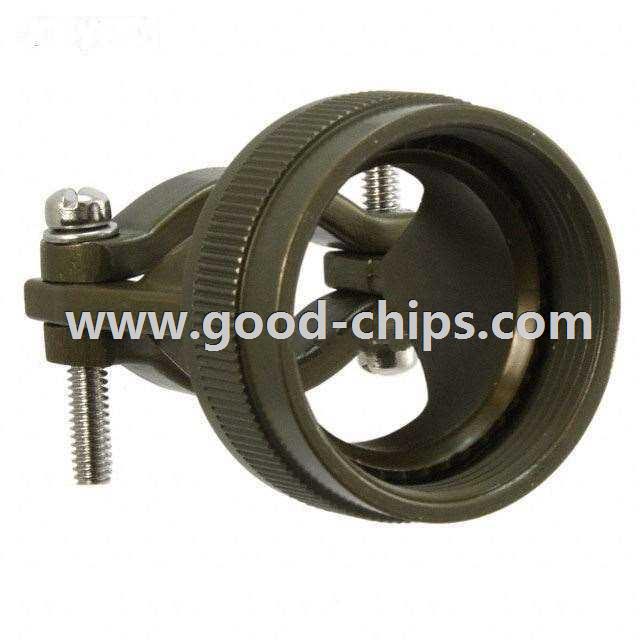

| Manufacturer Part Number: | M85049/52S22W |
|---|---|
| Manufacturer: | Amphenol PCD |
| Product Category: | Circular Connectors - Backshells and Cable Clamps |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Olive Drab Connector Cable Clamp 22 |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | M85049/52S22W Datasheet |
| Internal Part Number | 898-M85049/52S22W | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors - Backshells and Cable Clamps | |
| Manufacturer | Amphenol PCD | |
| Series | Military, SAE AS85049 | |
| Part Status | Active | |
| Type | Cable Clamp | |
| Cable Opening | 0.644" ~ 0.956" (16.36mm ~ 24.28mm) | |
| Diameter - Outside | 1.760" (44.70mm) | |
| Shell Size - Insert | 22 | |
| Thread Size | - | |
| Cable Exit | 180° | |
| Material | Aluminum Alloy | |
| Plating | Cadmium | |
| Shielding | Unshielded | |
| Color | Olive Drab | |
| Features | Clamp Screws, Self-Locking | |
| Ingress Protection | - | |
| Includes | - | |
| Material Flammability Rating | - | |
| For Use With/Related Products | MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | M85049/52S22W | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
M85049/52S22W is in stock for immediate shipping now. We are the distributor of Amphenol PCD all series components. The condition of M85049/52S22W is new and unused, you can buy M85049/52S22W Amphenol PCD with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M85049/52S22W.
