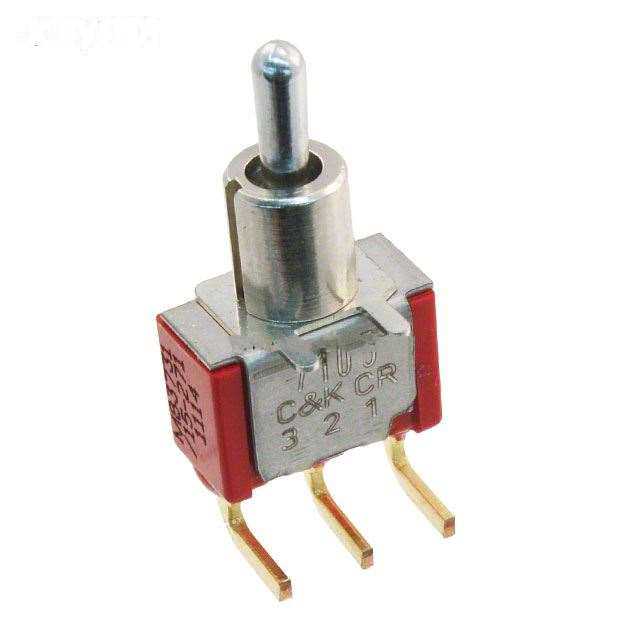

M83731/15-271

M83731/15-271
Manufacturer Part Number:M83731/15-271
Manufacturer:
Product Category:Toggle Switches
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:Toggle Switch SPDT Through Hole, Right Angle
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: M83731/15-271 Datasheet
M83731/15-271´s Parameters
Internal Part Number898-M83731/15-271
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategorySwitches
FamilyToggle Switches
ManufacturerC&K Components
SeriesM83731
PackagingTray
Part StatusObsolete
CircuitSPDT
Switch FunctionMom-Off-Mom
Current Rating5A (AC/DC)
Voltage Rating - AC115V
Voltage Rating - DC28V
Actuator TypeStandard Round
Actuator Length6.90mm
IlluminationNon-Illuminated
Illumination Type, Color-
Illumination Voltage (Nominal)-
Mounting TypeThrough Hole, Right Angle
Termination StylePC Pin
Panel Cutout Dimensions-
Bushing ThreadUnthreaded
Ingress Protection-
FeaturesEpoxy Sealed Terminals
Actuator MaterialBrass, Chrome Plated
Electrical Life10,000 Cycles
Operating Temperature-25°C ~ 71°C
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement PartM83731/15-271
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

M83731/15-271 is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of M83731/15-271 is new and unused, you can buy M83731/15-271 C&K Components with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for M83731/15-271.
