| Manufacturer Part Number: | M81707FP |
|---|---|
| Manufacturer: | Powerex Inc. |
| Product Category: | PMIC - Full, Half-Bridge Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | HVIC DRVR HB 600V 100MA 16-SOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | M81707FP Datasheet |
| Internal Part Number | 898-M81707FP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Full, Half-Bridge Drivers | |
| Manufacturer | Powerex Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Output Configuration | Half Bridge (2) | |
| Applications | AC Loads, Bulbs, General Purpose | |
| Interface | Logic | |
| Load Type | Inductive, Capacitive, Resistive | |
| Technology | Power MOSFET | |
| Rds On (Typ) | 50 Ohm LS, 35 Ohm HS | |
| Current - Output / Channel | - | |
| Current - Peak Output | 100mA | |
| Voltage - Supply | 10 V ~ 20 V | |
| Voltage - Load | 500V (Max) | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Features | - | |
| Fault Protection | - | |
| Mounting Type | Surface Mount | |

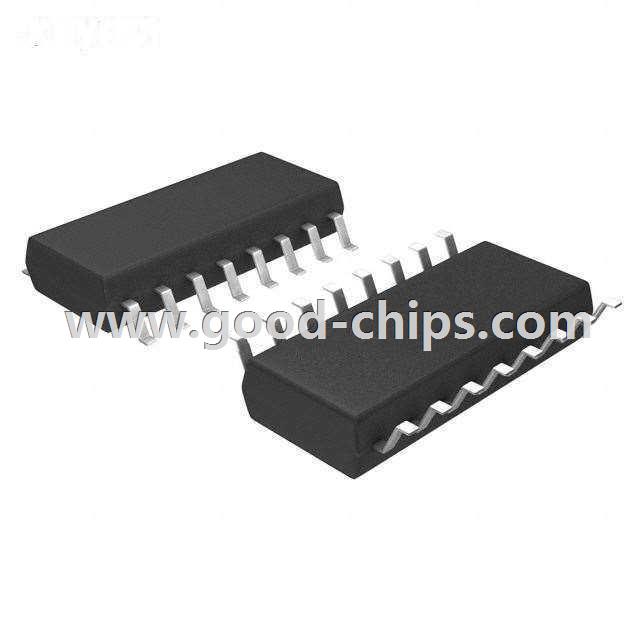

| Package / Case | 16-SOIC (0.209", 5.30mm Width) | |
| Supplier Device Package | 16-SOP | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | M81707FP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
M81707FP is in stock for immediate shipping now. We are the distributor of Powerex Inc. all series components. The condition of M81707FP is new and unused, you can buy M81707FP Powerex Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M81707FP.
