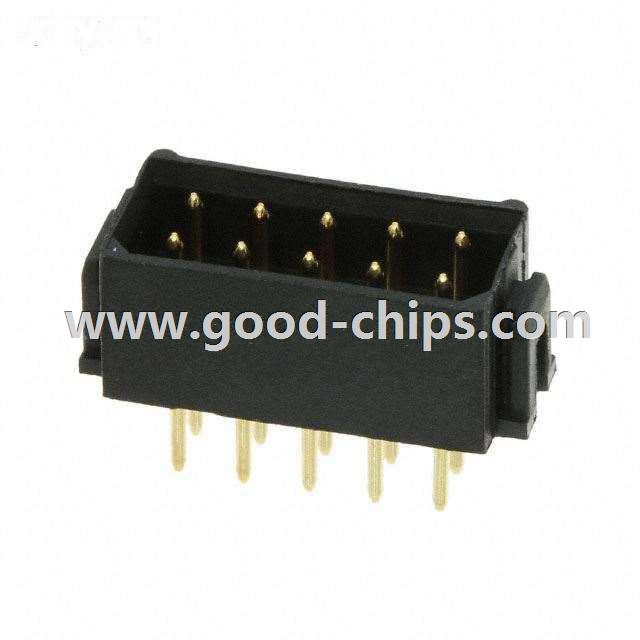

| Manufacturer Part Number: | M80-8691005 |
|---|---|
| Manufacturer: | Harwin Inc. |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9514 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10 Positions Plug Connector 0.079" (2.00mm) Through Hole Gold |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | M80-8691005 Datasheet |
| Internal Part Number | 898-M80-8691005 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Datamate L-Tek Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Harwin Inc. | |
| Series | Datamate L-Tek | |
| Packaging | Tube | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Plug | |
| Number of Positions | 10 | |
| Number of Positions Loaded | All | |
| Pitch | 0.079" (2.00mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.079" (2.00mm) | |
| Contact Mating Length | - | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 29.5µin (0.75µm) | |
| Color | Black | |
| Standard Package | 18 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | M80-8691005 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
M80-8691005 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of M80-8691005 is new and unused, you can buy M80-8691005 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M80-8691005.
