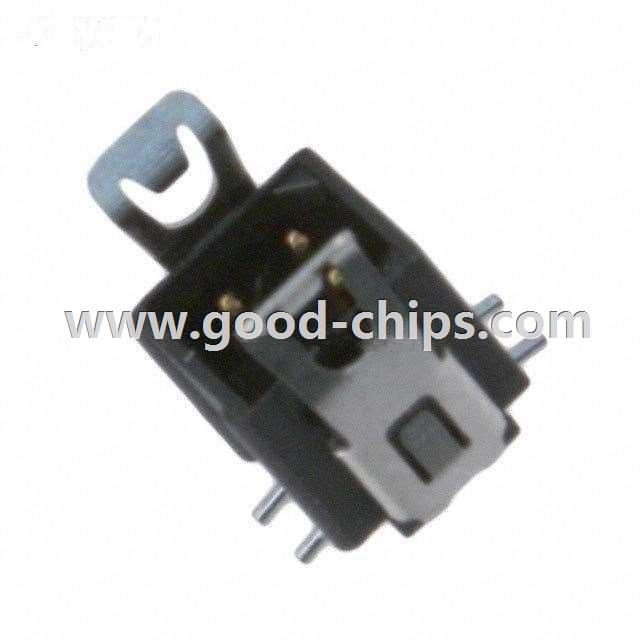

Manufacturer Part Number: | M80-8280442 |
---|---|
Manufacturer: | Harwin Inc. |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 9643 Pieces |
Unit Price: | Quote by Email |
Description: | 4 Positions Header, Shrouded Connector 0.079" (2.00mm) Surface Mount Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | M80-8280442 Datasheet |
Internal Part Number | 898-M80-8280442 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Datamate High Reliability Connectors | |
Featured Product | Datamate L-Tek Connectors Datamate Series Connectors | |
PCN Design/Specification | L-Tek SMT Material 19/Dec/2013 | |
Online Catalog | Datamate L-Tek Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | Harwin Inc. | |
Series | Datamate L-Tek | |
Packaging | Tube | |
Part Status | Active | |
Contact Type | Male Pin | |
Connector Type | Header, Shrouded | |
Number of Positions | 4 | |
Number of Positions Loaded | All | |
Pitch | 0.079" (2.00mm) | |
Number of Rows | 2 | |
Row Spacing | 0.079" (2.00mm) | |
Contact Mating Length | - | |
Mounting Type | Surface Mount | |
Termination | Solder | |
Fastening Type | Latch Lock | |
Features | - | |
Contact Finish | Gold | |
Contact Finish Thickness | 29.5µin (0.75µm) | |
Color | Black | |
Standard Package | 32 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | M80-8280442 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
M80-8280442 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of M80-8280442 is new and unused, you can buy M80-8280442 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M80-8280442.
