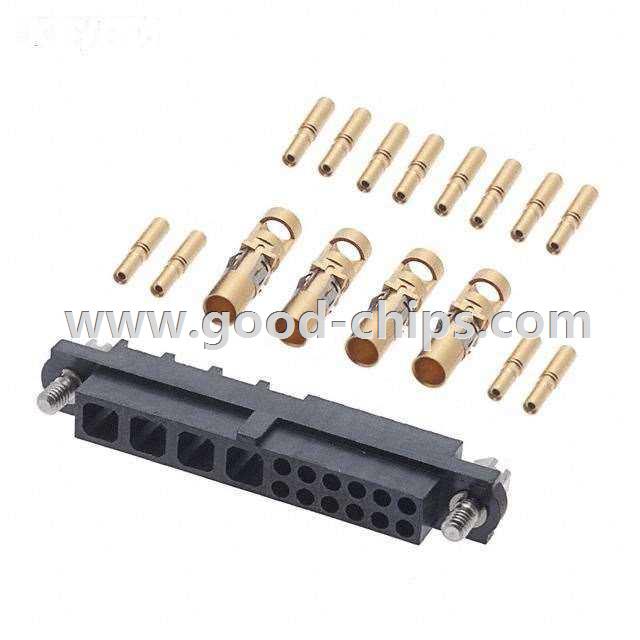

| Manufacturer Part Number: | M80-4C11205F1-04-325-00-000 |
|---|---|
| Manufacturer: | Harwin Inc. |
| Product Category: | Rectangular Connectors - Free Hanging, Panel Mount |
| Available Quantity: | 9069 Pieces |
| Unit Price: | Quote by Email |
| Description: | 16 (12 + 4 Power) Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | M80-4C11205F1-04-325-00-000 Datasheet |
| Internal Part Number | 898-M80-4C11205F1-04-325-00-000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Datamate High Reliability Connectors | |
| Featured Product | Datamate Mix-Tek Datamate Series Connectors | |
| Online Catalog | Datamate Mix-Tek Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Free Hanging, Panel Mount | |
| Manufacturer | Harwin Inc. | |
| Series | Datamate Mix-Tek | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle | |
| Contact Type | Female Socket | |
| Number of Positions | 16 (12 + 4 Power) | |
| Pitch | 0.079" (2.00mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.079" (2.00mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Fastening Type | - | |
| Cable Termination | Crimp | |
| Wire Type | Discrete | |
| Wire Gauge | 24-28 AWG | |
| Features | Jackscrews | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 12µin (0.30µm) | |
| Color | Black | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | M80-4C11205F1-04-325-00-000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
M80-4C11205F1-04-325-00-000 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of M80-4C11205F1-04-325-00-000 is new and unused, you can buy M80-4C11205F1-04-325-00-000 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M80-4C11205F1-04-325-00-000.
