Manufacturer Part Number: | M80-4C10805F1-04-325-00-000 |
---|---|
Manufacturer: | Harwin Inc. |
Product Category: | Rectangular Connectors - Free Hanging, Panel Mount |
Available Quantity: | 9040 Pieces |
Unit Price: | Quote by Email |

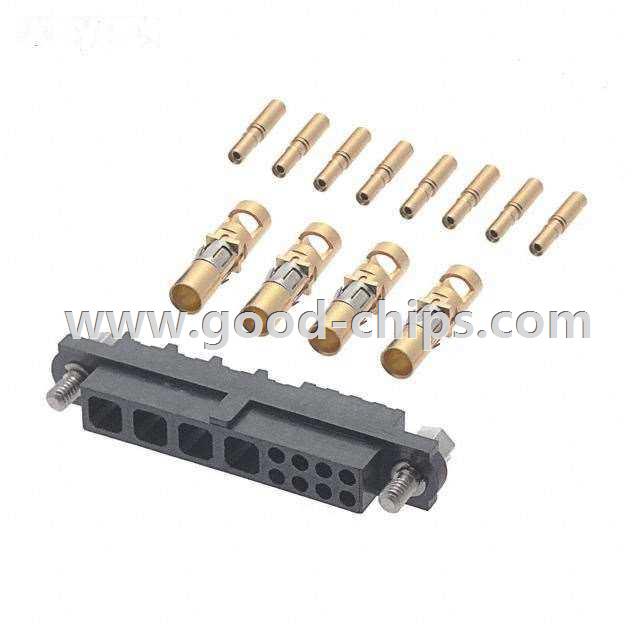

Description: | 12 (8 + 4 Power) Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | M80-4C10805F1-04-325-00-000 Datasheet |
Internal Part Number | 898-M80-4C10805F1-04-325-00-000 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Datamate High Reliability Connectors | |
Featured Product | Datamate Mix-Tek Datamate Series Connectors | |
Online Catalog | Datamate Mix-Tek Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Free Hanging, Panel Mount | |
Manufacturer | Harwin Inc. | |
Series | Datamate Mix-Tek | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Receptacle | |
Contact Type | Female Socket | |
Number of Positions | 12 (8 + 4 Power) | |
Pitch | 0.079" (2.00mm) | |
Number of Rows | 2 | |
Row Spacing | 0.079" (2.00mm) | |
Mounting Type | Free Hanging (In-Line) | |
Fastening Type | - | |
Cable Termination | Crimp | |
Wire Type | Discrete | |
Wire Gauge | 24-28 AWG | |
Features | Jackscrews | |
Contact Finish | Gold | |
Contact Finish Thickness | 12µin (0.30µm) | |
Color | Black | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | M80-4C10805F1-04-325-00-000 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
M80-4C10805F1-04-325-00-000 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of M80-4C10805F1-04-325-00-000 is new and unused, you can buy M80-4C10805F1-04-325-00-000 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M80-4C10805F1-04-325-00-000.
