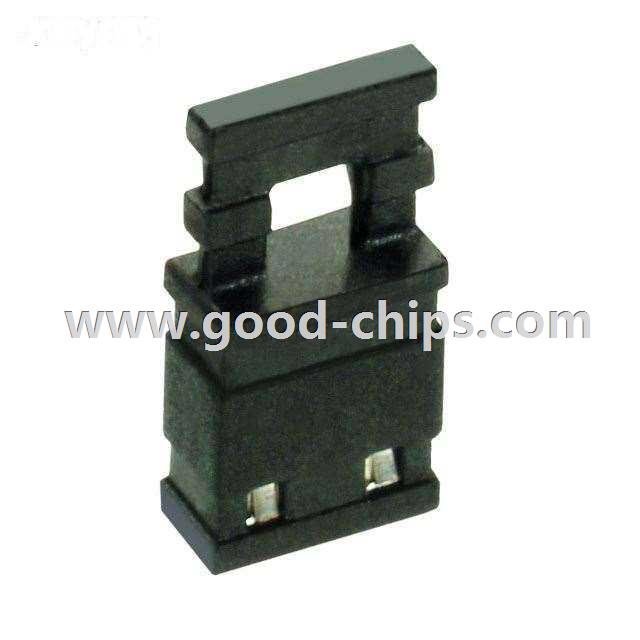

Manufacturer Part Number: | M7686-46 |
---|---|
Manufacturer: | Harwin Inc. |
Product Category: | Shunts, Jumpers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 2 (1 x 2) Position Shunt Connector Black Closed Top, Grip 0.100" (2.54mm) Tin |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | M7686-46 Datasheet |
Internal Part Number | 898-M7686-46 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Shunts, Jumpers | |
Manufacturer | Harwin Inc. | |
Series | M76 | |
Packaging | Bulk | |
Part Status | Active | |
Type | Closed Top, Grip | |
Gender | Female Sockets | |
Number of Positions or Pins (Grid) | 2 (1 x 2) | |
Pitch | 0.100" (2.54mm) | |
Height | 0.394" (10.00mm) | |
Contact Finish | Tin | |
Contact Finish Thickness | 118.1µin (3.00µm) | |
Color | Black | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | M7686-46 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
M7686-46 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of M7686-46 is new and unused, you can buy M7686-46 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M7686-46.
