M7682-46

M7682-46
Manufacturer Part Number:M7682-46
Manufacturer:
Product Category:Shunts, Jumpers
Available Quantity:9010 Pieces
Unit Price:Quote by Email

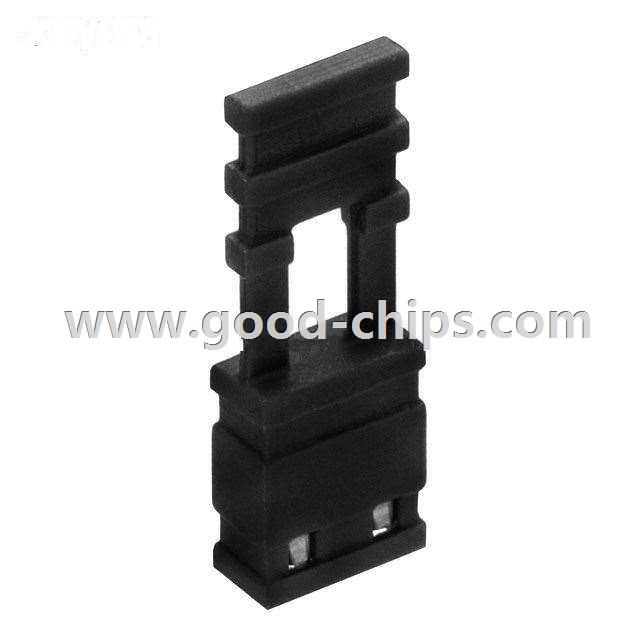

Description:2 (1 x 2) Position Shunt Connector Black Closed Top, Grip 0.100" (2.54mm) Tin
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: M7682-46 Datasheet
M7682-46´s Parameters
Internal Part Number898-M7682-46
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryConnectors, Interconnects
FamilyShunts, Jumpers
ManufacturerHarwin Inc.
SeriesM76
PackagingBulk
Part StatusActive
TypeClosed Top, Grip
GenderFemale Sockets
Number of Positions or Pins (Grid)2 (1 x 2)
Pitch0.100" (2.54mm)
Height0.551" (14.00mm)
Contact FinishTin
Contact Finish Thickness118.1µin (3.00µm)
ColorBlack
Standard Package 1,000
Weight0.001 KG
ApplicationEmail for details
Replacement PartM7682-46
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

M7682-46 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of M7682-46 is new and unused, you can buy M7682-46 Harwin Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for M7682-46.
