| Manufacturer Part Number: | M7682-05 |
|---|---|
| Manufacturer: | Harwin Inc. |
| Product Category: | Shunts, Jumpers |
| Available Quantity: | 17287 Pieces |
| Unit Price: | Quote by Email |

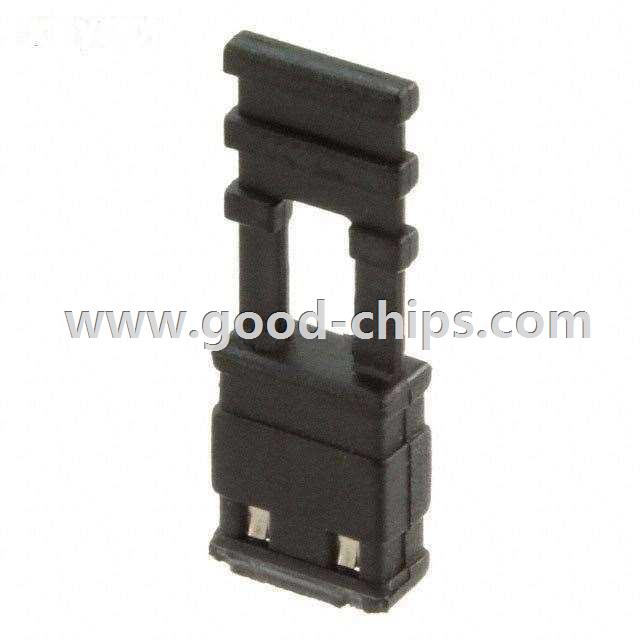

| Description: | 2 (1 x 2) Position Shunt Connector Black Closed Top, Grip 0.100" (2.54mm) Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | M7682-05 Datasheet |
| Internal Part Number | 898-M7682-05 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Shunts and Jumpers - Harwin Inc | |
| Category | Connectors, Interconnects | |
| Family | Shunts, Jumpers | |
| Manufacturer | Harwin Inc. | |
| Series | M76 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Closed Top, Grip | |
| Gender | Female Sockets | |
| Number of Positions or Pins (Grid) | 2 (1 x 2) | |
| Pitch | 0.100" (2.54mm) | |
| Height | 0.551" (14.00mm) | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 5.11µin (0.13µm) | |
| Color | Black | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | M7682-05 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
M7682-05 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of M7682-05 is new and unused, you can buy M7682-05 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M7682-05.
