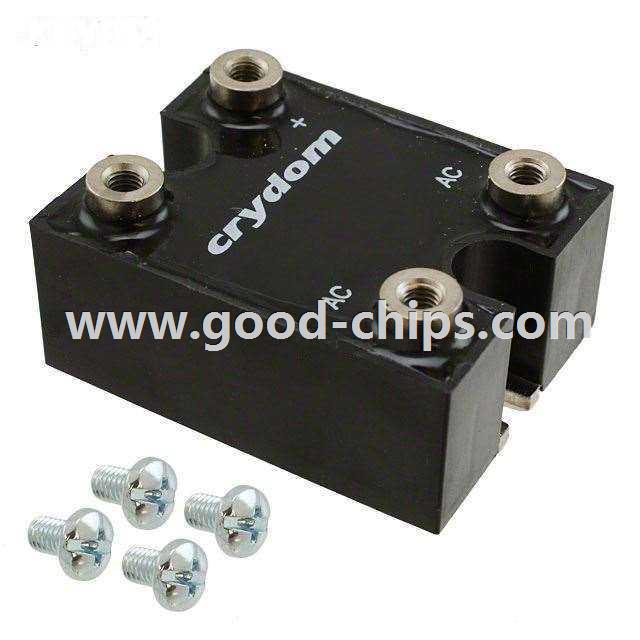

| Manufacturer Part Number: | M5060CC1200 |
|---|---|
| Manufacturer: | Crydom Co. |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Array 1 Pair Common Cathode Standard 1200V (1.2kV) 60A (DC) Chassis Mount Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | M5060CC1200 Datasheet |
| Internal Part Number | 898-M5060CC1200 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Declaration of Conformity | |
| 3D Model | M50 SB, DD, CC, THC, THA Series.sat M50 SB, DD, CC, THC, THA Series.dwg M50 SB, DD, CC, THC, THA Series.stp | |
| Online Catalog | Standard Diode Array | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | Crydom Co. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Diode Configuration | 1 Pair Common Cathode | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 1200V (1.2kV) | |
| Current - Average Rectified (Io) (per Diode) | 60A (DC) | |
| Voltage - Forward (Vf) (Max) @ If | 1.35V @ 60A | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | - | |
| Mounting Type | Chassis Mount | |
| Package / Case | Module | |
| Supplier Device Package | Module | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | M5060CC1200 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
M5060CC1200 is in stock for immediate shipping now. We are the distributor of Crydom Co. all series components. The condition of M5060CC1200 is new and unused, you can buy M5060CC1200 Crydom Co. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M5060CC1200.
