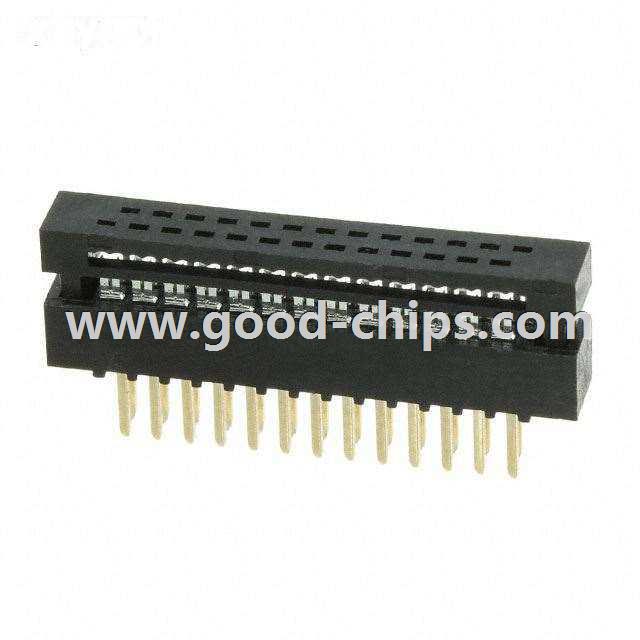

Manufacturer Part Number: | M50-3801342 |
---|---|
Manufacturer: | Harwin Inc. |
Product Category: | Rectangular Connectors - Board In, Direct Wire to Board |
Available Quantity: | 9263 Pieces |
Unit Price: | Quote by Email |
Description: | 26 Position Ribbon Cable, DIP Header Connector IDC 30 AWG Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | M50-3801342 Datasheet |
Internal Part Number | 898-M50-3801342 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Archer M50 Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Board In, Direct Wire to Board | |
Manufacturer | Harwin Inc. | |
Series | Archer M50 | |
Packaging | Tray | |
Part Status | Active | |
Connector Type | Ribbon Cable, DIP Header | |
Number of Positions | 26 | |
Cable Pitch | 0.025" (0.64mm) | |
Board-Side Pitch | 0.050" (1.27mm) | |
Number of Rows | 2 | |
Row Spacing | 0.050" (1.27mm) | |
Mounting Type | Through Hole | |
Cable Termination | IDC | |
Wire Gauge | 30 AWG | |
Features | Feed Through | |
Contact Finish | Gold | |
Contact Finish Thickness | - | |
Color | - | |
Number of Positions Loaded | All | |
Standard Package | 120 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | M50-3801342 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
M50-3801342 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of M50-3801342 is new and unused, you can buy M50-3801342 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M50-3801342.
