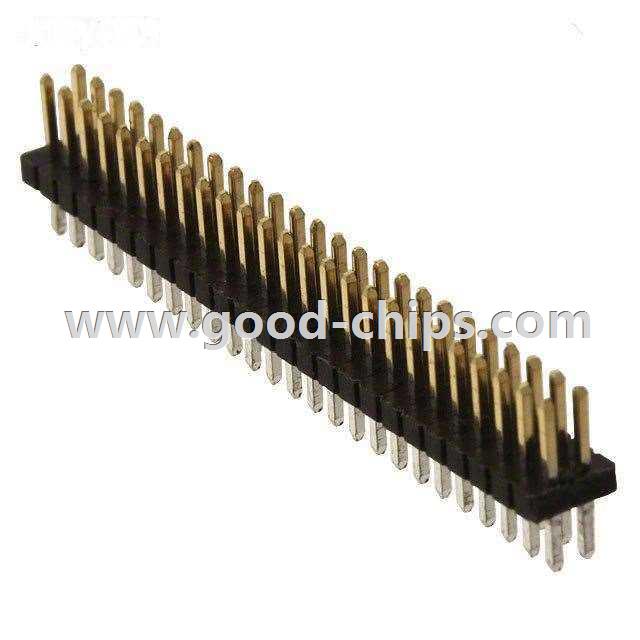

Manufacturer Part Number: | M50-3502542 |
---|---|
Manufacturer: | Harwin Inc. |
Product Category: | Rectangular - Board to Board Connectors - Headers, Male Pins |
Available Quantity: | 9677 Pieces |
Unit Price: | Quote by Email |
Description: | CONN HDR 1.27MM VERT AU 50POS |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | M50-3502542 Datasheet |
Internal Part Number | 898-M50-3502542 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | 1.27mm Archer Connector Series | |
Featured Product | Archer M50 Connectors | |
Online Catalog | Archer M50 Series | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Headers, Male Pins | |
Manufacturer | Harwin Inc. | |
Series | Archer M50 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Unshrouded | |
Number of Positions | 50 | |
Number of Positions Loaded | All | |
Pitch | 0.050" (1.27mm) | |
Number of Rows | 2 | |
Row Spacing | 0.050" (1.27mm) | |
Height Stacking (Mating) | 0.126", 0.181", 0.213", 0.217" (3.20mm, 4.60mm, 5.40mm, 5.50mm) | |
Molding Height Above Board | 0.039" (1.00mm) | |
Contact Mating Length | 0.118" (3.00mm) | |
Mounting Type | Through Hole | |
Termination | Solder | |
Contact Finish | Gold | |
Contact Finish Thickness | 3µin (0.08µm) | |
Features | - | |
Color | Black | |
Standard Package | 120 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | M50-3502542 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
M50-3502542 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of M50-3502542 is new and unused, you can buy M50-3502542 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M50-3502542.
