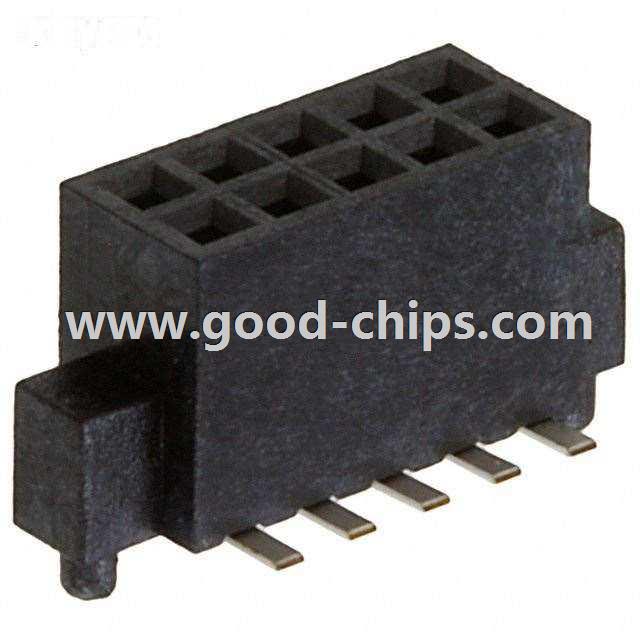

| Manufacturer Part Number: | M50-3110542 |
|---|---|
| Manufacturer: | Harwin Inc. |
| Product Category: | Rectangular - Board to Board Connectors - Headers, Receptacles, Female Sockets |
| Available Quantity: | 9033 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10 Position Receptacle Connector Gold 0.050" (1.27mm) Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | M50-3110542 Datasheet |
| Internal Part Number | 898-M50-3110542 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Archer M50 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Headers, Receptacles, Female Sockets | |
| Manufacturer | Harwin Inc. | |
| Series | Archer M50 | |
| Packaging | Tube | |
| Part Status | Active | |
| Connector Type | Receptacle | |
| Number of Positions | 10 | |
| Number of Positions Loaded | All | |
| Pitch | 0.050" (1.27mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.050" (1.27mm) | |
| Height Stacking (Mating) | 0.217", 0.243" (5.50mm, 6.18mm) | |
| Height Above Board | 0.169" (4.30mm) | |
| Mounting Type | Surface Mount | |
| Termination | Solder | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Features | Board Guide | |
| Color | Black | |
| Standard Package | 64 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | M50-3110542 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
M50-3110542 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of M50-3110542 is new and unused, you can buy M50-3110542 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M50-3110542.
