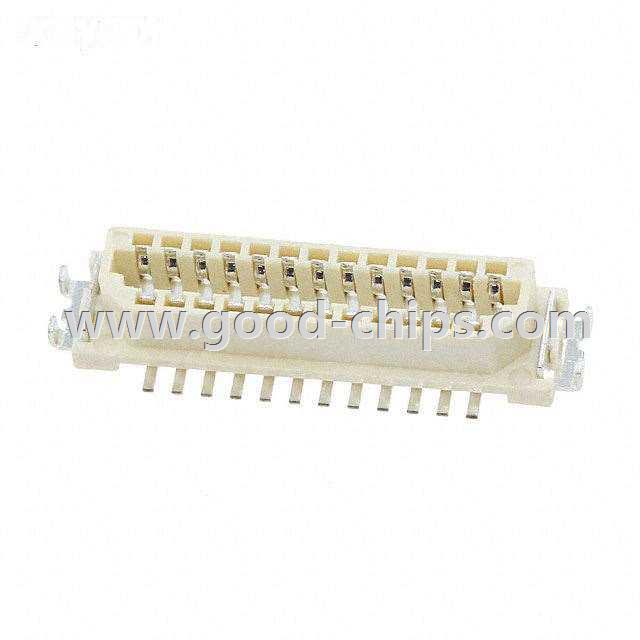

| Manufacturer Part Number: | M40-6202546 |
|---|---|
| Manufacturer: | Harwin Inc. |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 9159 Pieces |
| Unit Price: | Quote by Email |
| Description: | 25 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | M40-6202546 Datasheet |
| Internal Part Number | 898-M40-6202546 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | M40 1 mm Fine Pitch, Fully Shrouded, Board-to-Board Connectors | |
| Online Catalog | M40 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | Harwin Inc. | |
| Series | M40 | |
| Packaging | Tube | |
| Part Status | Active | |
| Connector Type | Receptacle, Outer Shroud Contacts | |
| Number of Positions | 25 | |
| Pitch | 0.039" (1.00mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Board Guide, Solder Retention | |
| Contact Finish | Tin | |
| Contact Finish Thickness | 80µin (2.03µm) | |
| Mated Stacking Heights | 4.3mm | |
| Height Above Board | 0.130" (3.30mm) | |
| Standard Package | 31 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | M40-6202546 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
M40-6202546 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of M40-6202546 is new and unused, you can buy M40-6202546 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M40-6202546.
