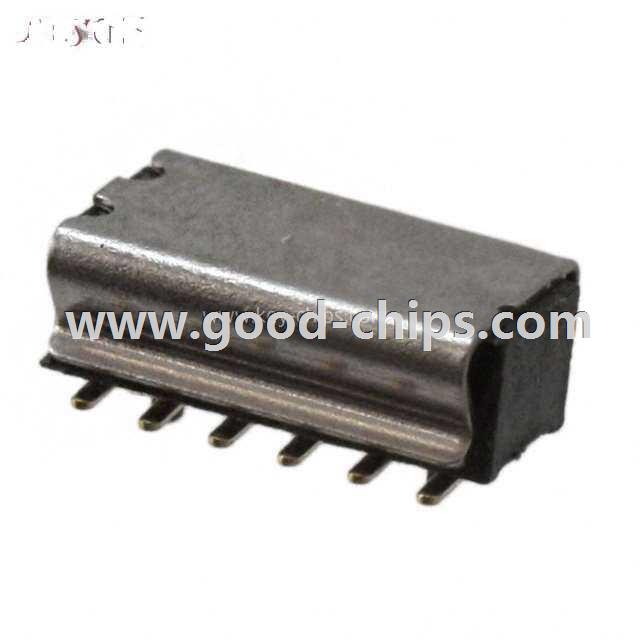

Manufacturer Part Number: | M40-3100645R |
---|---|
Manufacturer: | Harwin Inc. |
Product Category: | Rectangular - Board to Board Connectors - Headers, Receptacles, Female Sockets |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 12 Position Receptacle Connector Gold 0.039" (1.00mm) Surface Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | M40-3100645R Datasheet |
Internal Part Number | 898-M40-3100645R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | M40 1.00 mm Pitch Board-to-Board Connectors | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Headers, Receptacles, Female Sockets | |
Manufacturer | Harwin Inc. | |
Series | M40-310R | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Connector Type | Receptacle | |
Number of Positions | 12 | |
Number of Positions Loaded | All | |
Pitch | 0.039" (1.00mm) | |
Number of Rows | 2 | |
Row Spacing | 0.039" (1.00mm) | |
Height Stacking (Mating) | 0.167" (4.25mm) | |
Height Above Board | 0.089" (2.26mm) | |
Mounting Type | Surface Mount | |
Termination | Solder | |
Contact Finish | Gold | |
Contact Finish Thickness | Flash | |
Features | Board Guide | |
Color | Black | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | M40-3100645R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
M40-3100645R is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of M40-3100645R is new and unused, you can buy M40-3100645R Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M40-3100645R.
