| Manufacturer Part Number: | M40-3100545R |
|---|---|
| Manufacturer: | Harwin Inc. |
| Product Category: | Rectangular - Board to Board Connectors - Headers, Receptacles, Female Sockets |
| Available Quantity: | 11010 Pieces |
| Unit Price: | Quote by Email |

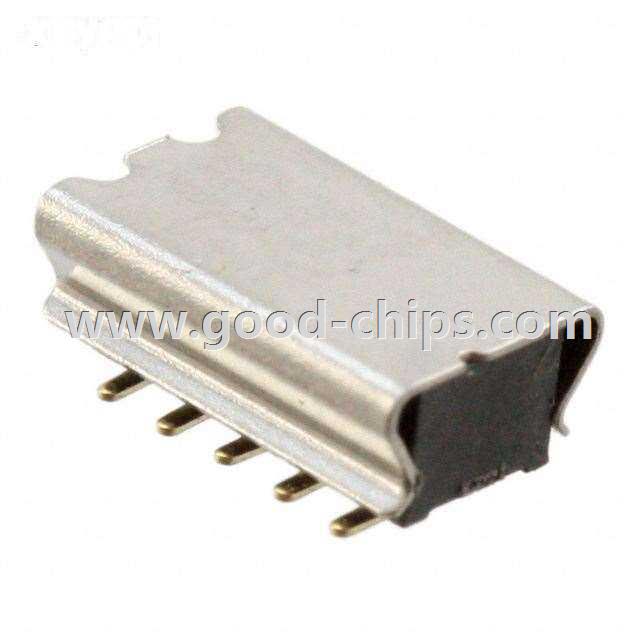

| Description: | 10 Position Receptacle Connector Gold 0.039" (1.00mm) Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | M40-3100545R Datasheet |
| Internal Part Number | 898-M40-3100545R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | M40 1.00 mm Pitch Board-to-Board Connectors | |
| Online Catalog | M40-310R Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Headers, Receptacles, Female Sockets | |
| Manufacturer | Harwin Inc. | |
| Series | M40-310R | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Connector Type | Receptacle | |
| Number of Positions | 10 | |
| Number of Positions Loaded | All | |
| Pitch | 0.039" (1.00mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.039" (1.00mm) | |
| Height Stacking (Mating) | 0.167" (4.25mm) | |
| Height Above Board | 0.089" (2.26mm) | |
| Mounting Type | Surface Mount | |
| Termination | Solder | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Features | Board Guide | |
| Color | Black | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | M40-3100545R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
M40-3100545R is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of M40-3100545R is new and unused, you can buy M40-3100545R Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M40-3100545R.
