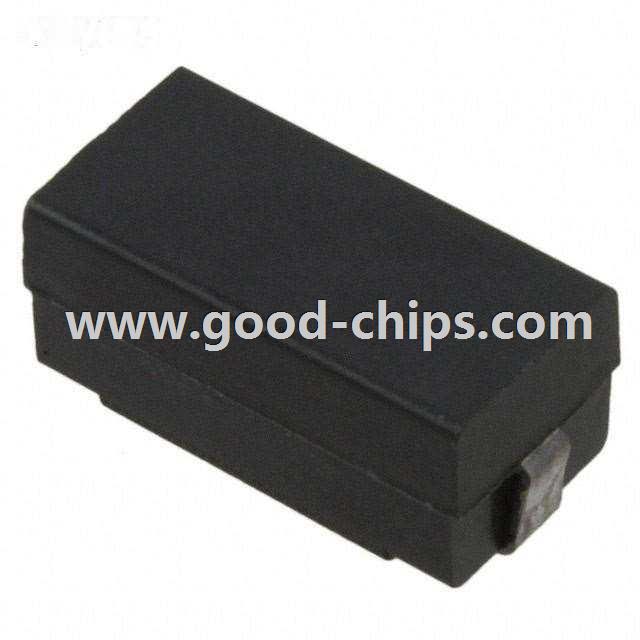

Manufacturer Part Number: | M27/367-27 |
---|---|
Manufacturer: | API Delevan Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 9810 Pieces |
Unit Price: | Quote by Email |
Description: | 33µH Unshielded Inductor 1.33A 222 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | M27/367-27 Datasheet |
Internal Part Number | 898-M27/367-27 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Military, MIL-PRF-27/3xx Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | API Delevan Inc. | |
Series | Military, MIL-PRF-27/367, MIL4922 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | - | |
Material - Core | Ferrite | |
Inductance | 33µH | |
Tolerance | ±15% | |
Current Rating | 1.33A | |
Current - Saturation | 1.33A | |
Shielding | Unshielded | |
DC Resistance (DCR) | 222 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -55°C ~ 130°C | |
Frequency - Test | 1kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.520" L x 0.250" W (13.21mm x 6.35mm) | |
Height - Seated (Max) | 0.230" (5.84mm) | |
Standard Package | 800 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | M27/367-27 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
M27/367-27 is in stock for immediate shipping now. We are the distributor of API Delevan Inc. all series components. The condition of M27/367-27 is new and unused, you can buy M27/367-27 API Delevan Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M27/367-27.
