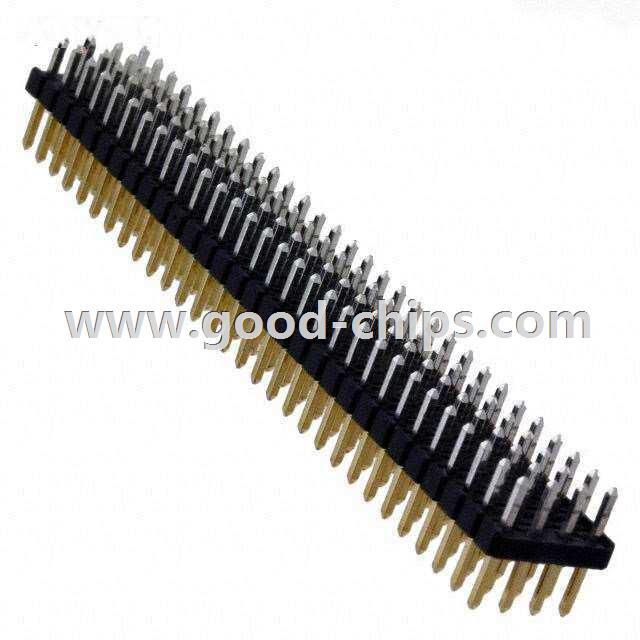

| Manufacturer Part Number: | M22-6023042 |
|---|---|
| Manufacturer: | Harwin Inc. |
| Product Category: | Backplane Connectors - Specialized |
| Available Quantity: | 9046 Pieces |
| Unit Price: | Quote by Email |
| Description: | PC104 PL00 HEADER |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | M22-6023042 Datasheet |
| Internal Part Number | 898-M22-6023042 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | M20, M22 Series | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Specialized | |
| Manufacturer | Harwin Inc. | |
| Series | M22 | |
| Packaging | Tube | |
| Part Status | Active | |
| Connector Usage | - | |
| Connector Type | Header, Male Pins | |
| Connector Style | PC/104 Plus | |
| Number of Positions | 120 | |
| Number of Positions Loaded | All | |
| Pitch | 0.079" (2.00mm) | |
| Number of Rows | 4 | |
| Number of Columns | - | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Contact Layout, Typical | - | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Color | Black | |
| Current Rating | 1A | |
| Material Flammability Rating | UL94 V-0 | |
| Operating Temperature | -55°C ~ 105°C | |
| Voltage Rating | 250V | |
| Standard Package | 9 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | M22-6023042 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
M22-6023042 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of M22-6023042 is new and unused, you can buy M22-6023042 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M22-6023042.
