| Manufacturer Part Number: | M21P/1 |
|---|---|
| Manufacturer: | Standex-Meder Electronics |
| Product Category: | Magnets - Sensor Matched |
| Available Quantity: | 9057 Pieces |
| Unit Price: | Quote by Email |

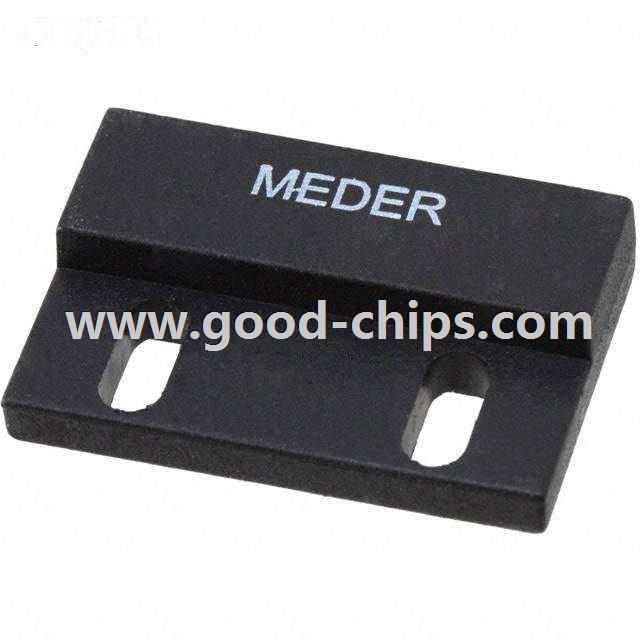

| Description: | ACTUATOR MAGNET FLANGE MNT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | M21P/1 Datasheet |
| Internal Part Number | 898-M21P/1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Magnetic Mapping Magnet Technology and Their Uses | |
| Online Catalog | M21 | |
| Category | Sensors, Transducers | |
| Family | Magnets - Sensor Matched | |
| Manufacturer | Standex-Meder Electronics | |
| Series | M21 | |
| Part Status | Active | |
| For Use With/Related Products | MK21 | |
| Housing Material | Polybutylene Terephthalate (PBT) | |
| Material - Magnet | Alnico (AlNiCo) | |
| Package / Case | Flange Mount | |
| Size | 1.122" L x 0.246" W x 0.750" H (28.5mm x 6.25mm x 19.0mm) | |
| Operating Temperature | 150°C (TA) | |
| Standard Package | 80 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | M21P/1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
M21P/1 is in stock for immediate shipping now. We are the distributor of Standex-Meder Electronics all series components. The condition of M21P/1 is new and unused, you can buy M21P/1 Standex-Meder Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M21P/1.
