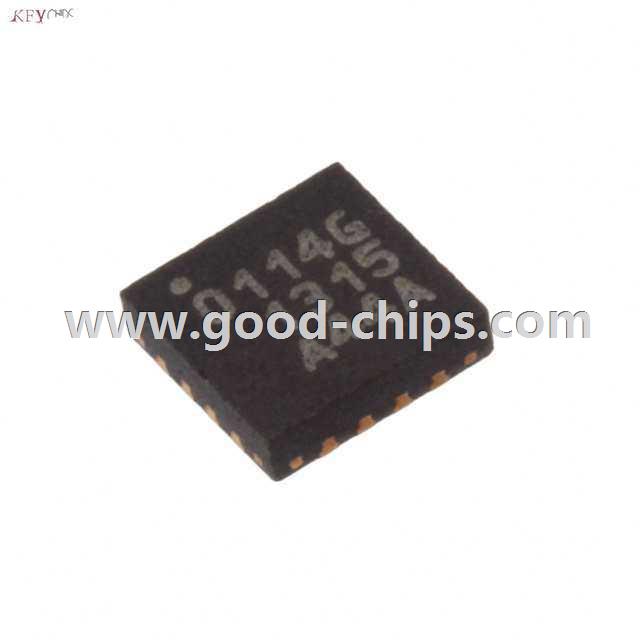

| Manufacturer Part Number: | M20001G-14 |
|---|---|
| Manufacturer: | M/A-Com Technology Solutions |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 11870 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Circuit IC Switch 2:1 15.5 Ohm 16-QFN (3x3) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | M20001G-14 Datasheet |
| Internal Part Number | 898-M20001G-14 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | M/A-Com Technology Solutions | |
| Series | - | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Switch Circuit | SPDT | |
| Multiplexer/Demultiplexer Circuit | 2:1 | |
| Number of Circuits | 2 | |
| On-State Resistance (Max) | 15.5 Ohm | |
| Channel-to-Channel Matching (ΔRon) | 300 mOhm | |
| Voltage - Supply, Single (V+) | 2.97 V ~ 3.63 V | |
| Voltage - Supply, Dual (V±) | - | |
| Switch Time (Ton, Toff) (Max) | - | |
| -3db Bandwidth | 6GHz | |
| Charge Injection | - | |
| Channel Capacitance (CS(off), CD(off)) | - | |
| Current - Leakage (IS(off)) (Max) | - | |
| Crosstalk | -30dB @ 6GHz | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Package / Case | 16-VFQFN Exposed Pad | |
| Supplier Device Package | 16-QFN (3x3) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | M20001G-14 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
M20001G-14 is in stock for immediate shipping now. We are the distributor of M/A-Com Technology Solutions all series components. The condition of M20001G-14 is new and unused, you can buy M20001G-14 M/A-Com Technology Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M20001G-14.
