Manufacturer Part Number: | M20-7823646 |
---|---|
Manufacturer: | Harwin Inc. |
Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets |
Available Quantity: | 9130 Pieces |
Unit Price: | Quote by Email |

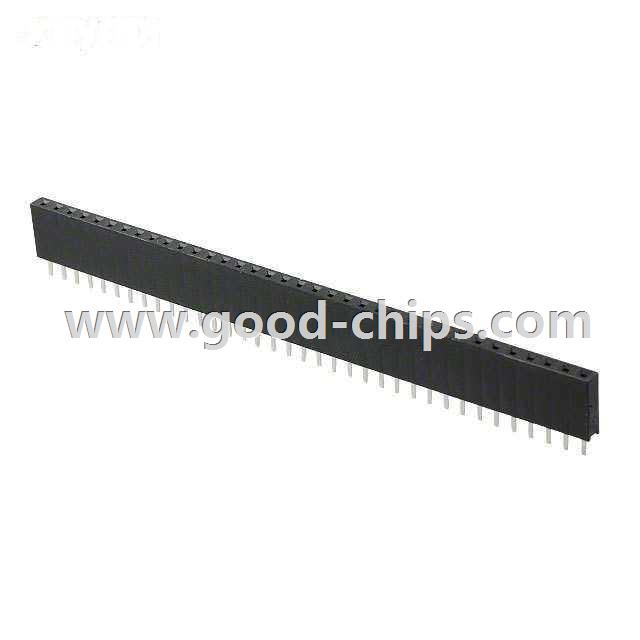

Description: | 36 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | M20-7823646 Datasheet |
Internal Part Number | 898-M20-7823646 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | M20 Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Receptacles, Female Sockets | |
Manufacturer | Harwin Inc. | |
Series | M20 | |
Packaging | Tube | |
Part Status | Active | |
Connector Type | Receptacle | |
Contact Type | Female Socket | |
Number of Positions | 36 | |
Number of Positions Loaded | All | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Mounting Type | Through Hole | |
Termination | Solder | |
Fastening Type | - | |
Features | - | |
Contact Finish | Tin | |
Contact Finish Thickness | - | |
Color | Black | |
Standard Package | 6 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | M20-7823646 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
M20-7823646 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of M20-7823646 is new and unused, you can buy M20-7823646 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M20-7823646.
