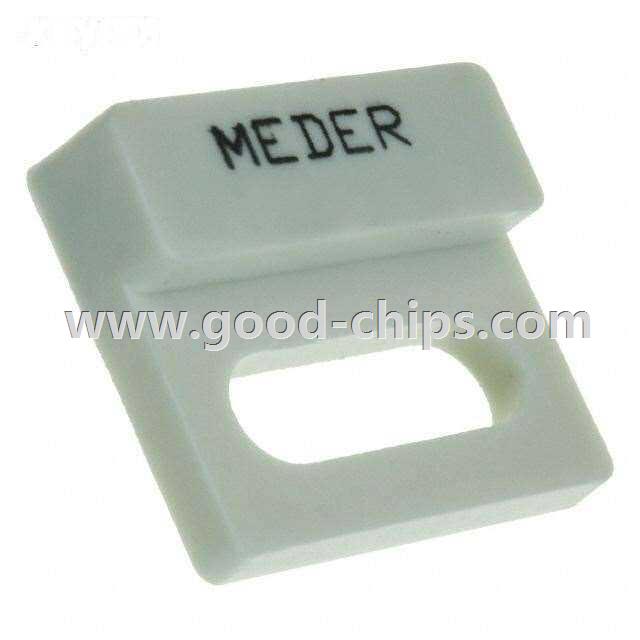

Manufacturer Part Number: | M05 |
---|---|
Manufacturer: | Standex-Meder Electronics |
Product Category: | Magnets - Sensor Matched |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | ACTUATOR MAGNET FLANGE MNT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | M05 Datasheet |
Internal Part Number | 898-M05 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Reed Switch Magnet Interaction Magnetic Mapping Magnet Technology and Their Uses | |
Online Catalog | M05 | |
Category | Sensors, Transducers | |
Family | Magnets - Sensor Matched | |
Manufacturer | Standex-Meder Electronics | |
Series | M05 | |
Part Status | Active | |
For Use With/Related Products | MK05 | |
Housing Material | Polybutylene Terephthalate (PBT) | |
Material - Magnet | Alnico 5 (AlNiCo) | |
Package / Case | Flange Mount | |
Size | 0.910" L x 0.550" W x 0.230" H (23.0mm x 13.9mm x 5.90mm) | |
Operating Temperature | 70°C (TA) | |
Standard Package | 80 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | M05 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
M05 is in stock for immediate shipping now. We are the distributor of Standex-Meder Electronics all series components. The condition of M05 is new and unused, you can buy M05 Standex-Meder Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M05.
