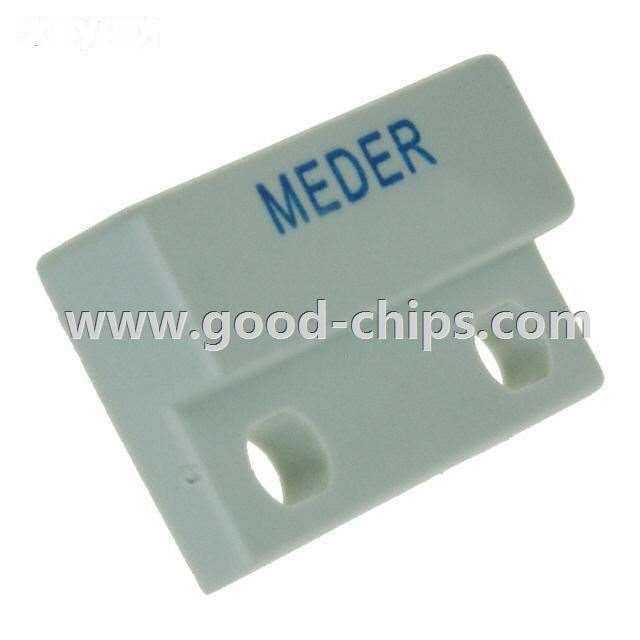

M04

M04
Manufacturer Part Number:M04
Manufacturer:
Product Category:Magnets - Sensor Matched
Available Quantity:10201 Pieces
Unit Price:Quote by Email
Description:ACTUATOR MAGNET FLANGE MNT
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: M04 Datasheet
M04´s Parameters
Internal Part Number898-M04
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesReed Switch Magnet Interaction
Magnetic Mapping
Online Catalog M04
CategorySensors, Transducers
FamilyMagnets - Sensor Matched
ManufacturerStandex-Meder Electronics
SeriesM04
Part StatusActive
For Use With/Related ProductsMK04
Housing MaterialPolybutylene Terephthalate (PBT)
Material - MagnetAlnico 5 (AlNiCo)
Package / CaseFlange Mount
Size0.910" L x 0.550" W x 0.230" H (23.0mm x 13.9mm x 5.90mm)
Operating Temperature70°C (TA)
Standard Package 120
Weight0.001 KG
ApplicationEmail for details
Replacement PartM04
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

M04 is in stock for immediate shipping now. We are the distributor of Standex-Meder Electronics all series components. The condition of M04 is new and unused, you can buy M04 Standex-Meder Electronics with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for M04.
