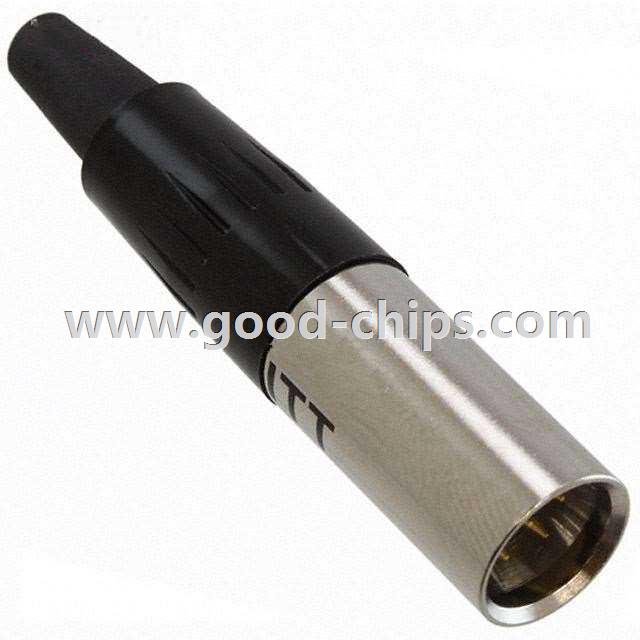

Manufacturer Part Number: | M-XL-5-12S |
---|---|
Manufacturer: | ITT Cannon, LLC |
Product Category: | Circular Connectors |
Available Quantity: | 9286 Pieces |
Unit Price: | Quote by Email |
Description: | 5 Position Circular Connector Plug, Male Pins Solder Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | M-XL-5-12S Datasheet |
Internal Part Number | 898-M-XL-5-12S | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Mini-XL Series | |
Category | Connectors, Interconnects | |
Family | Circular Connectors | |
Manufacturer | ITT Cannon, LLC | |
Series | Mini-XL | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Plug, Male Pins | |
Number of Positions | 5 | |
Shell Size - Insert | Mini XLR | |
Shell Size, MIL | - | |
Mounting Type | Free Hanging (In-Line) | |
Termination | Solder | |
Fastening Type | Latch Lock | |
Orientation | Keyed | |
Ingress Protection | - | |
Shell Material, Finish | Copper, Nickel Plated | |
Contact Finish | Gold | |
Features | Strain Relief | |
Contact Finish Thickness | - | |
Current Rating | 3A | |
Voltage - Rated | 125V | |
Operating Temperature | -35°C ~ 85°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | M-XL-5-12S | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
M-XL-5-12S is in stock for immediate shipping now. We are the distributor of ITT Cannon, LLC all series components. The condition of M-XL-5-12S is new and unused, you can buy M-XL-5-12S ITT Cannon, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M-XL-5-12S.
