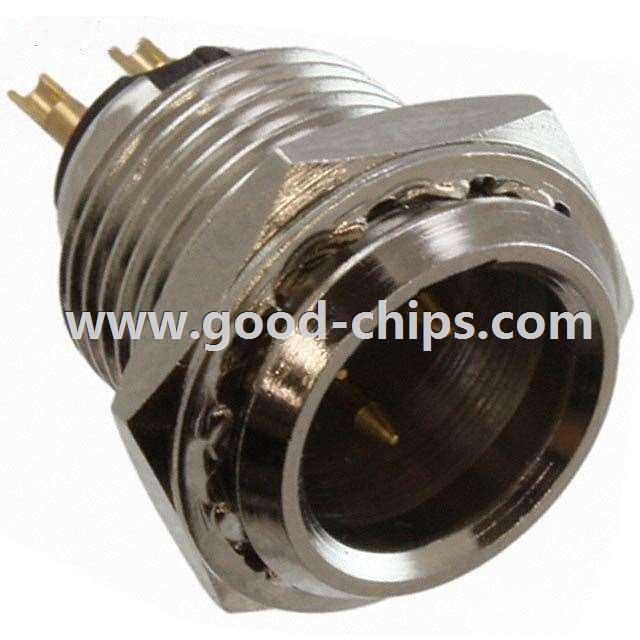

| Manufacturer Part Number: | M-XL-3-14 |
|---|---|
| Manufacturer: | ITT Cannon, LLC |
| Product Category: | Circular Connectors |
| Available Quantity: | 9454 Pieces |
| Unit Price: | Quote by Email |
| Description: | 3 Position Circular Connector Receptacle, Male Pins Solder Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | M-XL-3-14 Datasheet |
| Internal Part Number | 898-M-XL-3-14 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Mini-XL Series | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors | |
| Manufacturer | ITT Cannon, LLC | |
| Series | Mini-XL | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle, Male Pins | |
| Number of Positions | 3 | |
| Shell Size - Insert | Mini XLR | |
| Shell Size, MIL | - | |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | |
| Termination | Solder | |
| Fastening Type | Latch Lock | |
| Orientation | Keyed | |
| Ingress Protection | - | |
| Shell Material, Finish | Copper, Nickel Plated | |
| Contact Finish | Gold | |
| Features | - | |
| Contact Finish Thickness | - | |
| Current Rating | 3A | |
| Voltage - Rated | 125V | |
| Operating Temperature | -35°C ~ 85°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | M-XL-3-14 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
M-XL-3-14 is in stock for immediate shipping now. We are the distributor of ITT Cannon, LLC all series components. The condition of M-XL-3-14 is new and unused, you can buy M-XL-3-14 ITT Cannon, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M-XL-3-14.
