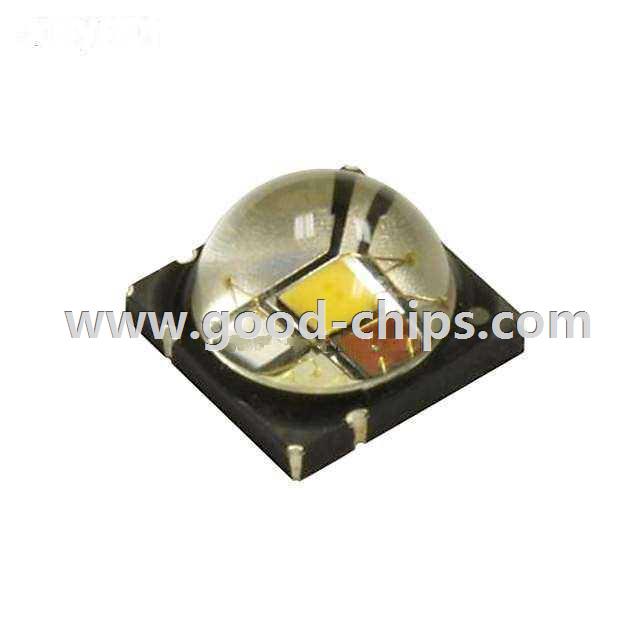

| Manufacturer Part Number: | LZ4-20MD00-0000 |
|---|---|
| Manufacturer: | LED Engin Inc. |
| Product Category: | LED Lighting - COBs, Engines, Modules |
| Available Quantity: | 9261 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Lighting COBs, Engines, Modules LED Module - Red, Green, Blue, White - Cool (RGBW) Starboard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LZ4-20MD00-0000 Datasheet |
| Internal Part Number | 898-LZ4-20MD00-0000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Online Catalog | LZ4-00MD00 | |
| Category | Optoelectronics | |
| Family | LED Lighting - COBs, Engines, Modules | |
| Manufacturer | LED Engin Inc. | |
| Series | - | |
| Packaging | - | |
| Part Status | Active | |
| Type | LED Module | |
| Color | Red, Green, Blue, White - Cool (RGBW) | |
| CCT (K) | 6500K | |
| Wavelength | 624nm Red, 525nm Green, 457nm Blue | |
| Configuration | Starboard | |
| Flux @ Current/Temperature - Test | 115 lm Red, 160 lm Green, 30 lm Blue, 190 lm White | |
| Current - Test | 700mA Red, 700mA Green, 700mA Blue, 700mA White | |
| Temperature - Test | 25°C | |
| Voltage - Forward (Vf) (Typ) | 2.2V Red, 3.35V Green, 3.2V Blue, 3.2V White | |
| Lumens/Watt @ Current - Test | 75 lm/W Red, 68 lm/W Green, 13 lm/W Blue, 85 lm/W White | |
| Current - Max | 1A Red, 1A Green, 1A Blue, 1A White | |
| CRI (Color Rendering Index) | 75 | |
| Viewing Angle | 95° | |
| Features | - | |
| Size / Dimension | 19.90mm Diameter | |
| Height | 5.60mm | |
| Light Emitting Surface (LES) | 5.60mm | |
| Lens Type | Domed | |
| Standard Package | 40 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LZ4-20MD00-0000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LZ4-20MD00-0000 is in stock for immediate shipping now. We are the distributor of LED Engin Inc. all series components. The condition of LZ4-20MD00-0000 is new and unused, you can buy LZ4-20MD00-0000 LED Engin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LZ4-20MD00-0000.
